PR3007G, PR3001G - 3.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER

DIODES

📥 Download Datasheet

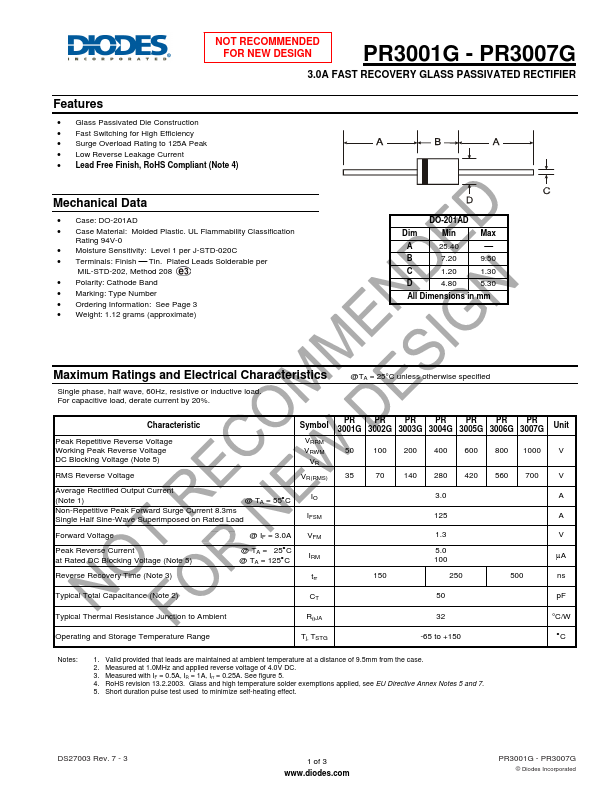

PR3007G Datasheet Preview — This datasheet PDF includes multiple part numbers: PR3007G, PR3001G. Please refer to the document for exact specifications by model.

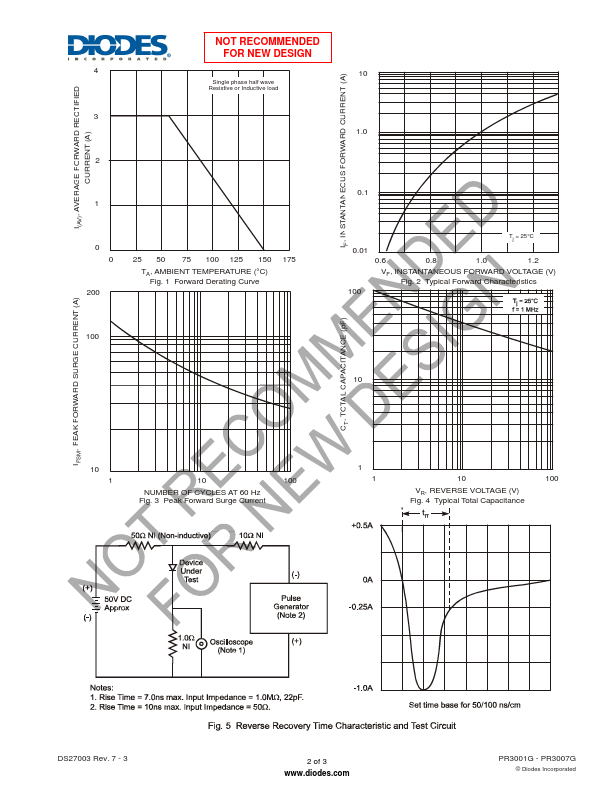

datasheet Preview Page 2

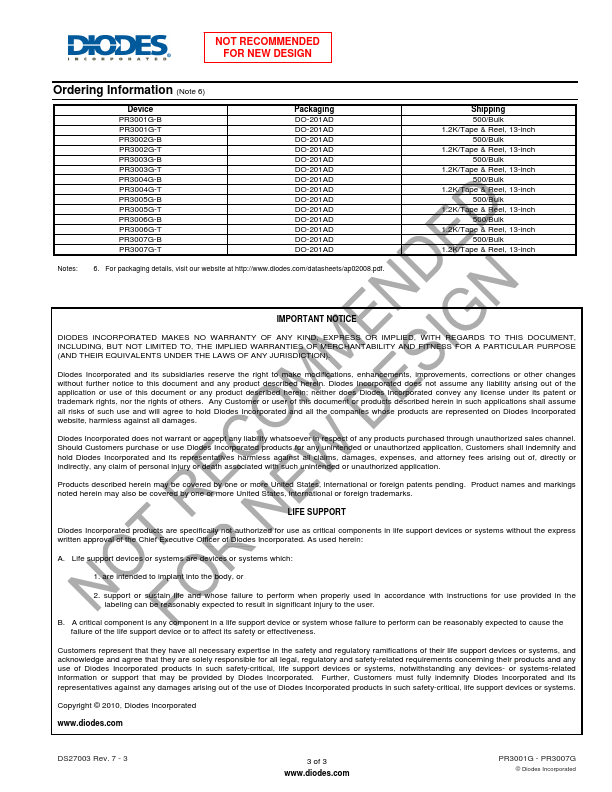

datasheet Preview Page 3

Datasheet Details

Part number	PR3007G, PR3001G
Manufacturer	DIODES ↗
File Size	97.24 KB
Description	3.0A FAST RECOVERY GLASS PASSIVATED RECTIFIER
Datasheet	PR3001G-DIODES.pdf
Note	This datasheet PDF includes multiple part numbers: PR3007G, PR3001G. Please refer to the document for exact specifications by model.

PR3007G Product details

Features

Glass Passivated Die Construction.
Fast Switching for High Efficiency.
Surge Overload Rating to 125A Peak.
Low Reverse Leakage Current.
Lead Free Finish, RoHS Compliant (Note 4) Mechanical Data.
Case: DO-201AD.
Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0.
Moisture Sensitivity: Level 1 per J-STD-020C.
Terminals: Finish ⎯ Tin. Plated Leads Solderable per MIL-STD-202, Method 208.
