MB351W - SINGLE-PHASE SILICON BRIDGE RECTIFIER

Product Overview

Sunmate

Part number	MB351W
Manufacturer	Sunmate
File Size	559.59 KB
Description	SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MB351W Datasheet
Note	This datasheet PDF includes multiple part numbers: MB351W, MB3505W. Please refer to the document for exact specifications by model.

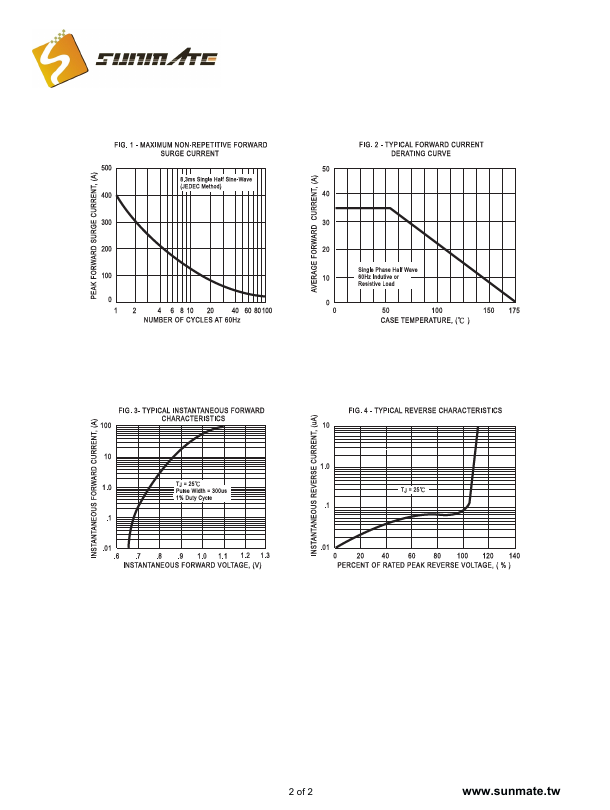

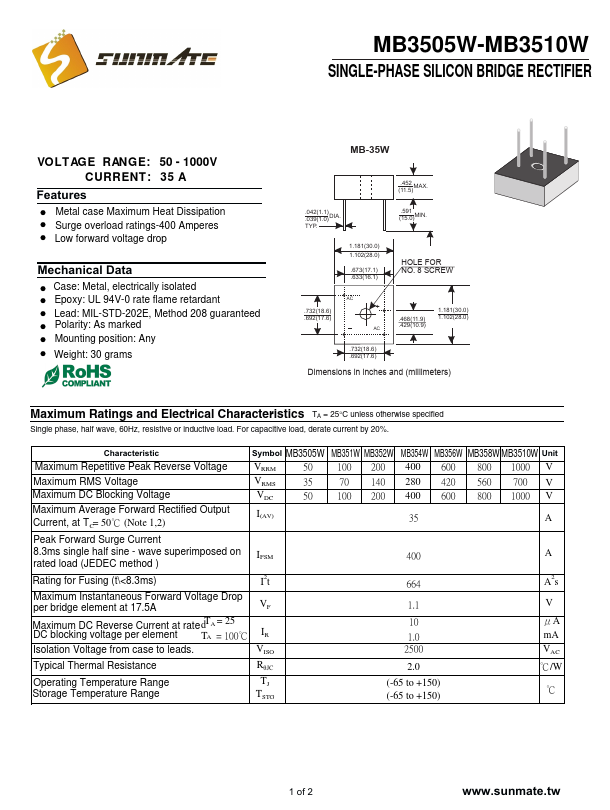

Additional preview pages of the MB351W datasheet.

D Metal case Maximum Heat Dissipation D Surge overload ratings-400 Amperes D Low forward voltage drop Mechanical Data D Case: Metal, electrically isolated D Epoxy: UL 94V-0 rate flame retardant D Lead: MIL-STD-202E, Method 208 guaranteed D Polarity: As marked D Mounting position: Any D Weight: 30 grams MB-35W (1.415.52)MAX. .042(1.1) .039(1.0) DIA. TYP. 1.181(30.0) 1.102(28.0) .673(17.1) .633(16.1) (.1559.10)MIN. HOLE FOR NO. 8 SCREW AC .732(18.6) .692(17.6) + 1.181(30.0) .468(11.9) 1.
