FS1D - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Product Overview

Sunmate

Part number	FS1D
Manufacturer	Sunmate
File Size	527.31 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	FS1D Datasheet
Note	This datasheet PDF includes multiple part numbers: FS1D, FS1A. Please refer to the document for exact specifications by model.

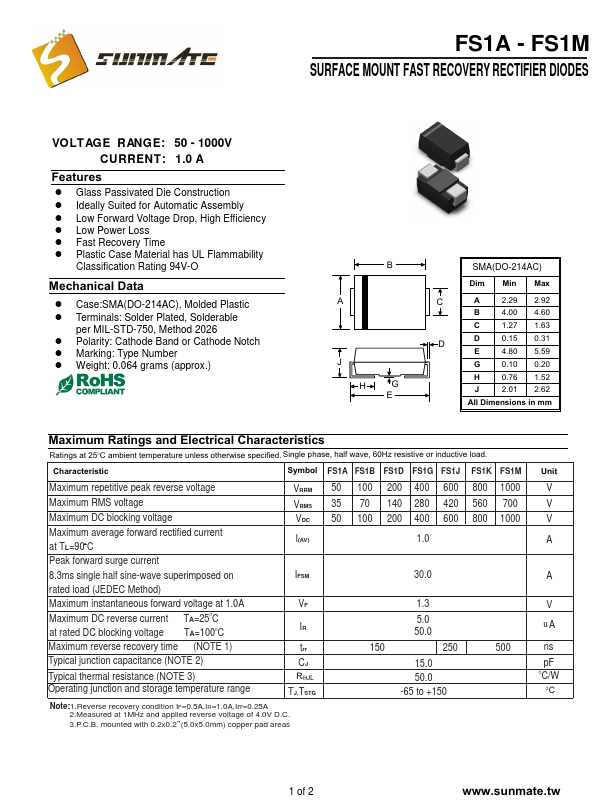

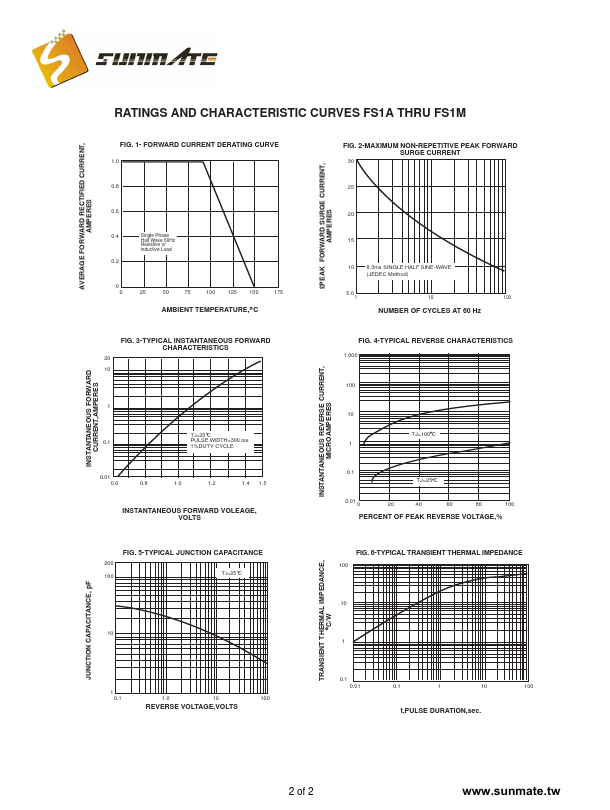

Additional preview pages of the FS1D datasheet.

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case:SMA(DO-214AC), Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A.
