FS1A - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES

Product Overview

Sunmate

Part number	FS1A
Manufacturer	Sunmate
File Size	527.31 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES
Datasheet	FS1A Datasheet

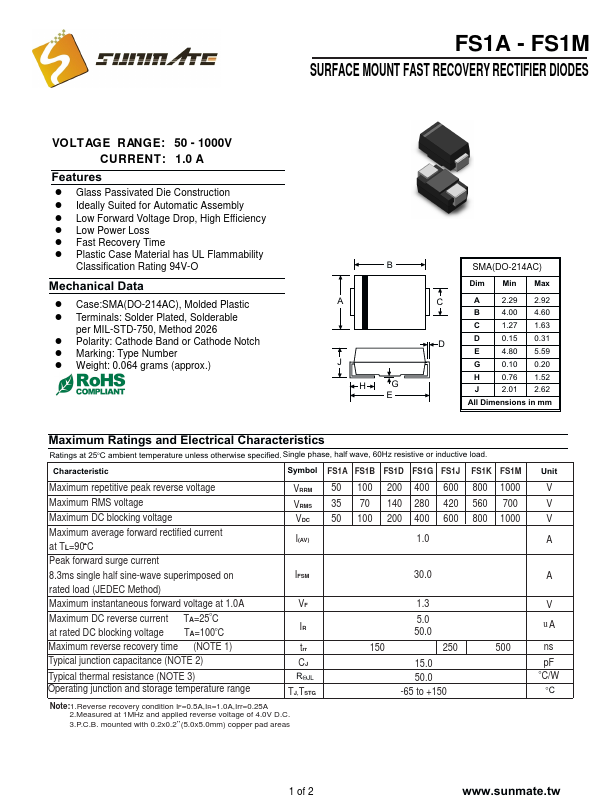

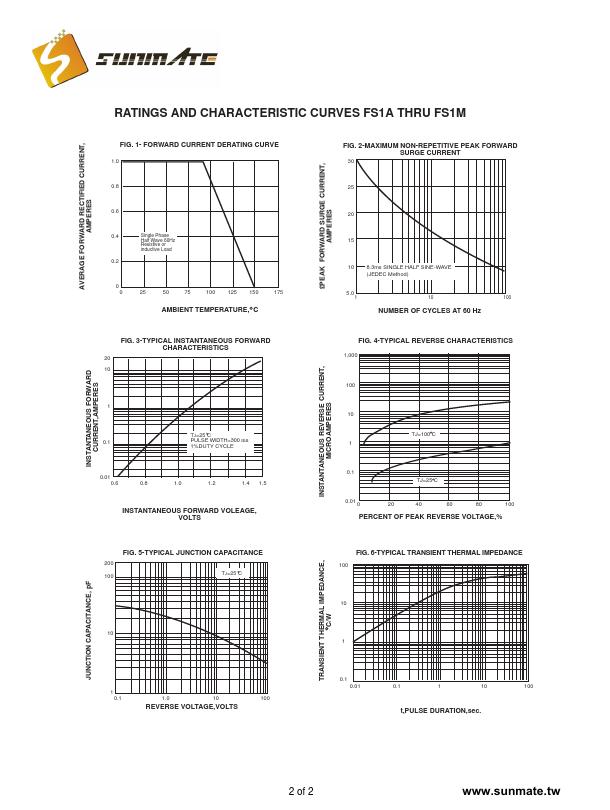

Additional preview pages of the FS1A datasheet.

! Glass Passivated Die Construction ! Ideally Suited for Automatic Assembly ! Low Forward Voltage Drop, High Efficiency ! Low Power Loss ! Fast Recovery Time ! Plastic Case Material has UL Flammability Classification Rating 94V-O Mechanical Data ! Case:SMA(DO-214AC), Molded Plastic ! Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 ! Polarity: Cathode Band or Cathode Notch ! Marking: Type Number ! Weight: 0.064 grams (approx. ) B A J H G E SMA(DO-214AC) Dim Min Max C A.
