DB156 - GLASS PASSIVATED BRIDGE RECTIFIER

Product Overview

Sunmate

Part number	DB156
Manufacturer	Sunmate
File Size	448.23 KB
Description	GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	DB156 Datasheet
Note	This datasheet PDF includes multiple part numbers: DB156, DB151. Please refer to the document for exact specifications by model.

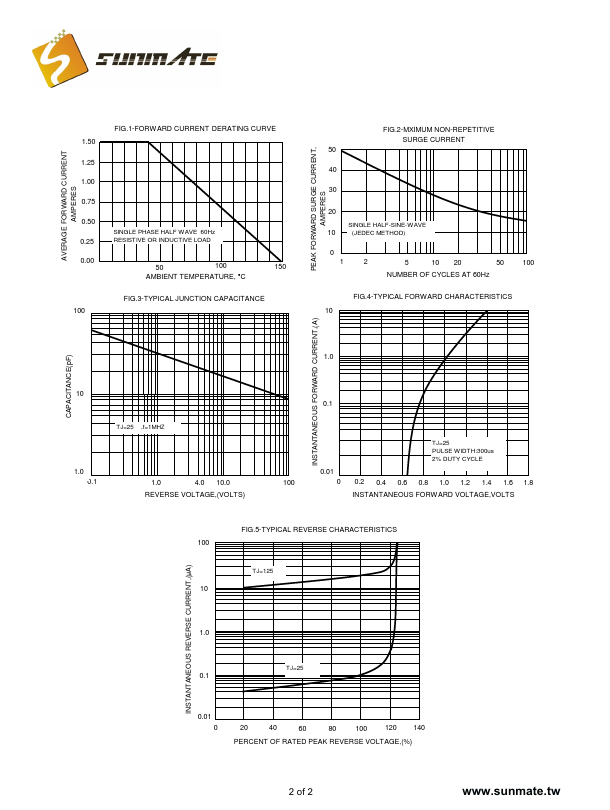

Additional preview pages of the DB156 datasheet.

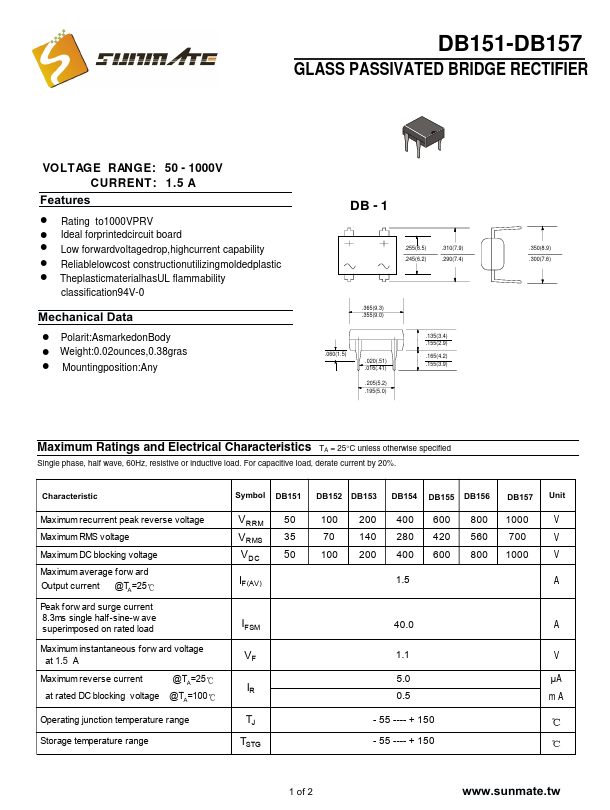

! Rating to1000VPRV ! Ideal forprintedcircuit board ! Low forwardvoltagedrop,highcurrent capability ! Reliablelowcost constructionutilizingmoldedplastic ! TheplasticmaterialhasUL flammability classification94V-0 Mechanical Data ! Polarit:AsmarkedonBody ! Weight:0.02ounces,0.38gras ! Mountingposition:Any DB - 1 .255(6.5) .245(6.2) .310(7.9) .290(7.4) .365(9.3) .355(9.0) .060(1.5) .020(.51) .016(.41) .205(5.2) .195(5.0) .135(3.4) .155(2.9) .165(4.2) .155(3.9) .350(8.9) .300(7.6) Maximum R.
