DB151 - GLASS PASSIVATED BRIDGE RECTIFIER

Product Overview

Sunmate

Part number	DB151
Manufacturer	Sunmate
File Size	448.23 KB
Description	GLASS PASSIVATED BRIDGE RECTIFIER
Datasheet	DB151 Datasheet

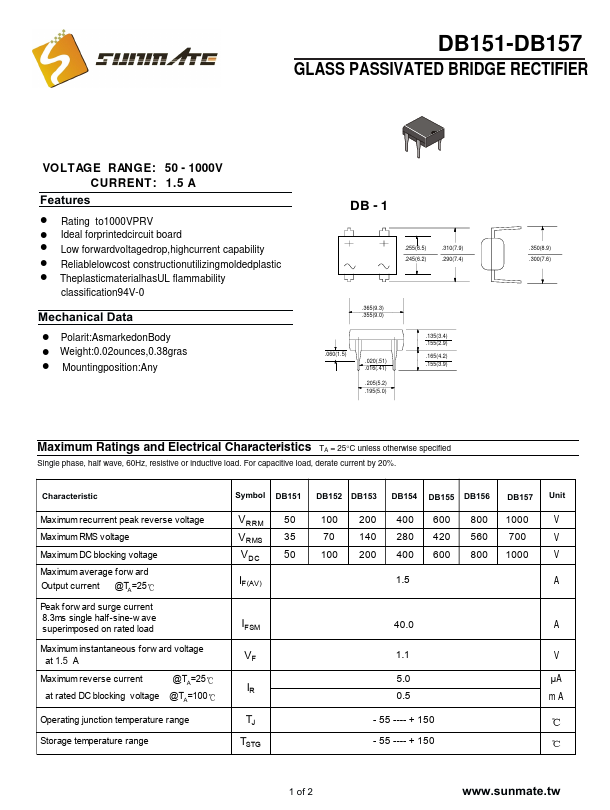

Additional preview pages of the DB151 datasheet.

! Rating to1000VPRV ! Ideal forprintedcircuit board ! Low forwardvoltagedrop,highcurrent capability ! Reliablelowcost constructionutilizingmoldedplastic ! TheplasticmaterialhasUL flammability classification94V-0 Mechanical Data ! Polarit:AsmarkedonBody ! Weight:0.02ounces,0.38gras ! Mountingposition:Any DB - 1 .255(6.5) .245(6.2) .310(7.9) .290(7.4) .365(9.3) .355(9.0) .060(1.5) .020(.51) .016(.41) .205(5.2) .195(5.0) .135(3.4) .155(2.9) .165(4.2) .155(3.9) .350(8.9) .300(7.6) Maximum R.
