BAV21 - SMALL SIGAL SWITCHING DIODES

Product Overview

Sunmate

Part number	BAV21
Manufacturer	Sunmate
File Size	602.72 KB
Description	SMALL SIGAL SWITCHING DIODES
Datasheet	BAV21 Datasheet
Note	This datasheet PDF includes multiple part numbers: BAV21, BAV17. Please refer to the document for exact specifications by model.

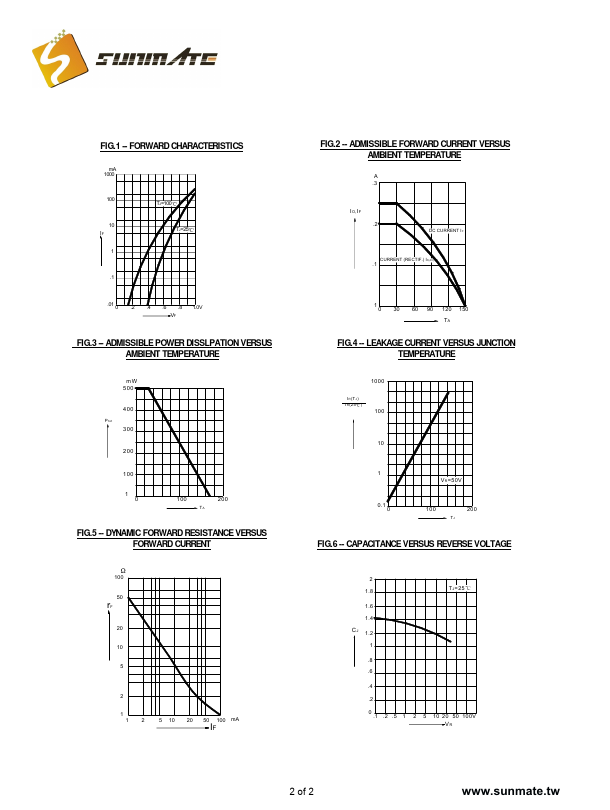

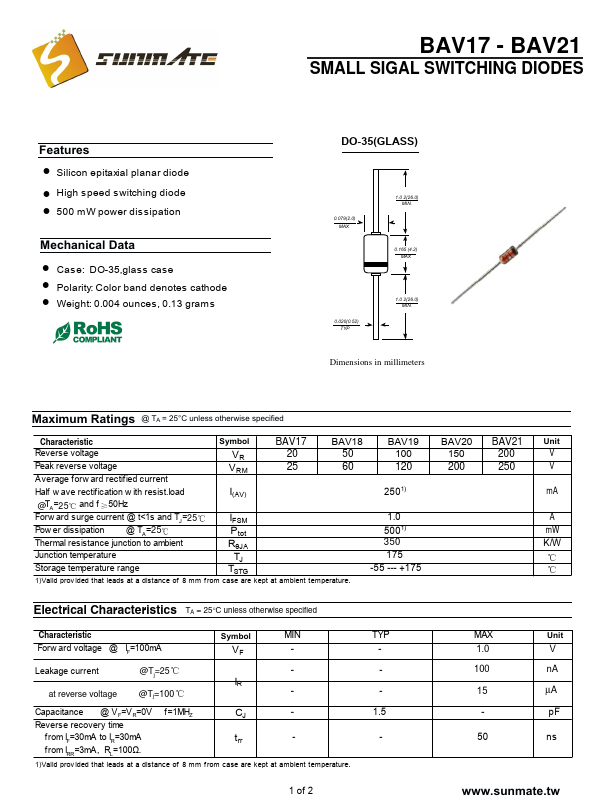

Additional preview pages of the BAV21 datasheet.

! Silicon epitaxial planar diode ! High speed switching diode ! 500 m W power dissipation Mechanical Data ! Case: DO-35,glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 gram s DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Symbol BAV17 BAV18 Reverse voltage Peak reverse voltage Average forw ard rectified current.
