BAV21HWF - SURFACE MOUNT HIGH VOLTAGE DIODE

Description

The BAV21HWF is a 250V, 100nA and 50ns switching diode that is optimized for high reverse breakdown voltage.

Mobile Portable Electronics Consumer Electronics Automotive BAV21HWF SURFACE MOUNT H

Features

  • High Reverse Breakdown Voltage.
  • Flat Leadframe Design for Improved Thermal Transfer.
  • High Conductance.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
  • Case: SOD123F.
  • Case Material: Molded Plastic, "Green" Molding Compound. UL Flammability Classification Rating 94V-0.
  • Moisture Sensitivity: Level 1 per J-STD-020.
  • Termin.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BAV21 Small Signal Switching Diodes Vishay
BAV21 SMALL SIGAL SWITCHING DIODES Sunmate
BAV21 General purpose diodes NXP
BAV21 SMALL SIGNAL SWITCHING DIODE Rectron
BAV21 (BAV19 - BAV21) Small-Signal Diode GOOD-ARK

Other Datasheets by Diodes Incorporated

Part Number Description
BAV21HWFQ SURFACE MOUNT HIGH VOLTAGE DIODE
BAV21W SURFACE MOUNT SWITCHING DIODE
BAV21W-7-F SURFACE MOUNT SWITCHING DIODE
BAV21WQ-7-F SURFACE MOUNT SWITCHING DIODE
BAV21WS SURFACE MOUNT HIGH VOLTAGE FAST SWITCHING DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

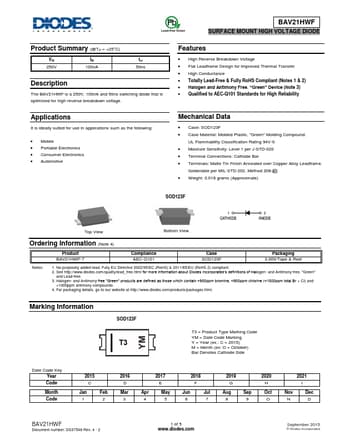

ADVANCED INFORMATION Product Summary (@TA = +25°C) VR 250V IR 100nA trr 50ns Description The BAV21HWF is a 250V, 100nA and 50ns switching diode that is optimized for high reverse breakdown voltage. Applications It is ideally suited for use in applications such as the following:  Mobile  Portable Electronics  Consumer Electronics  Automotive BAV21HWF SURFACE MOUNT HIGH VOLTAGE DIODE Features  High Reverse Breakdown Voltage  Flat Leadframe Design for Improved Thermal Transfer  High Conductance  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Mechanical Data  Case: SOD123F  Case Material: Molded Plastic, "Green" Molding Compound.
