1SS88

The 1SS88 is SILICON EPITAXIAL PLANAR DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1SS88
Manufacturer	Sunmate
File Size	292.09 KB
Description	SILICON EPITAXIAL PLANAR DIODES
Datasheet	1SS88-Sunmate.pdf

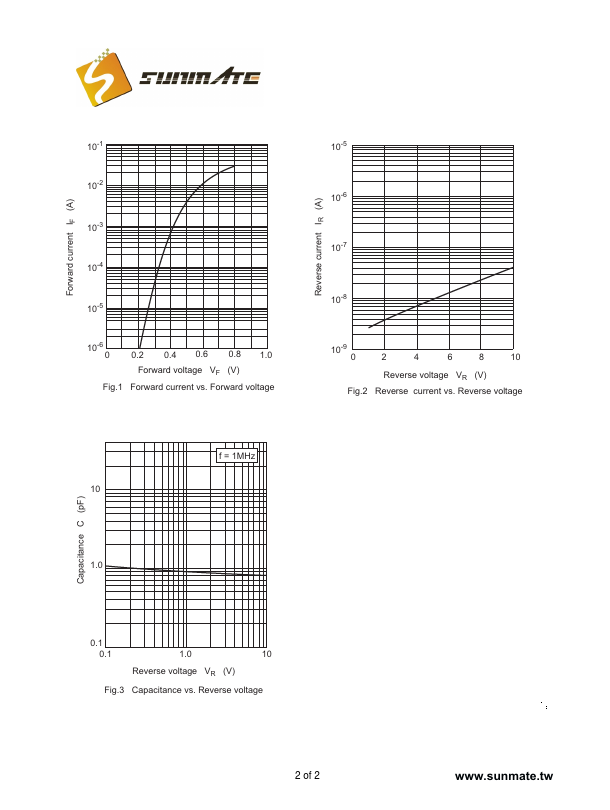

Additional preview pages of the 1SS88 datasheet.

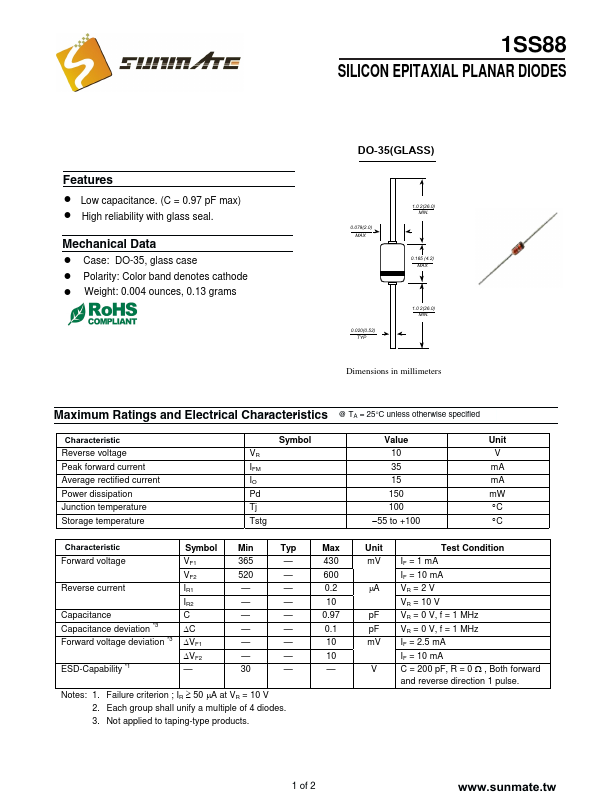

! Low capacitance. (C = 0.97 pF max) ! High reliability with glass seal. Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified Characteristic Reverse voltage Peak forward current Average rectified current Power dissipation J.
