1SS86

The 1SS86 is SILICON EPITAXIAL PLANAR DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1SS86
Manufacturer	Sunmate
File Size	459.60 KB
Description	SILICON EPITAXIAL PLANAR DIODES
Datasheet	1SS86-Sunmate.pdf
Additional preview pages of the 1SS86 datasheet.

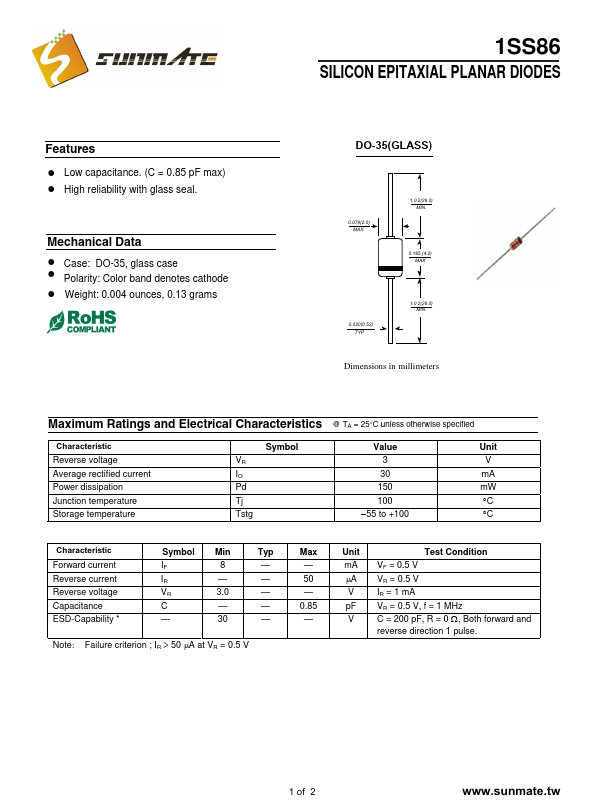

! Low capacitance. (C = 0.85 pF max) ! High reliability with glass seal. Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified Characteristic Reverse voltage Average rectified current Power dissipation Junction temperature S.
