1S1885

The 1S1885 is PLASTIC SILICON RECTIFIER DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1S1885
Manufacturer	Sunmate
File Size	364.87 KB
Description	PLASTIC SILICON RECTIFIER DIODES
Datasheet	1S1885-Sunmate.pdf

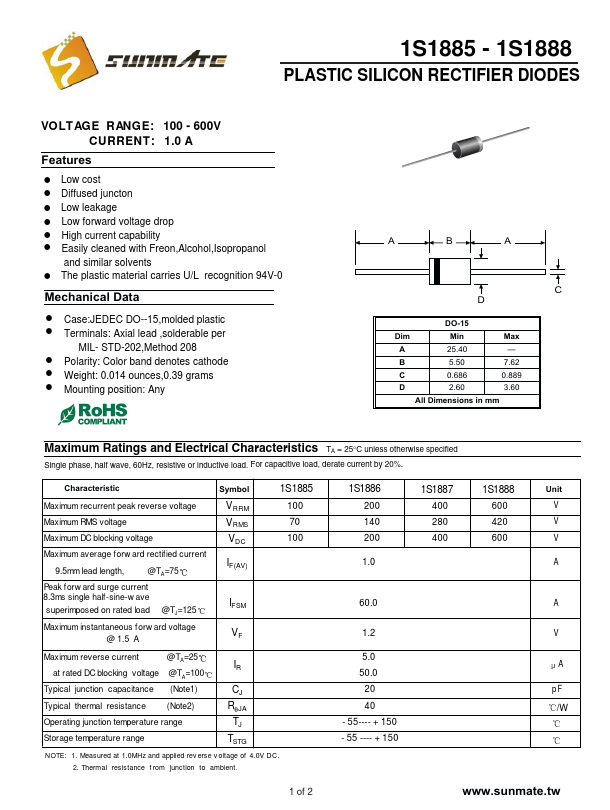

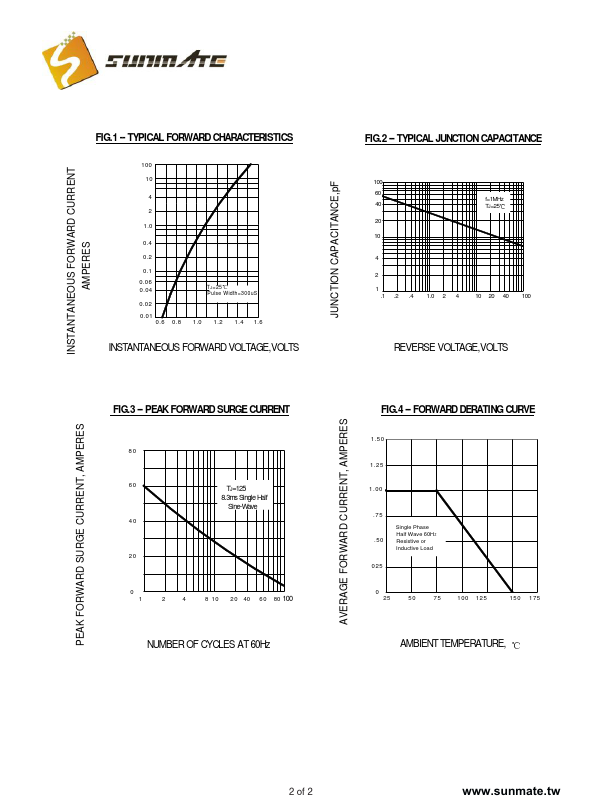

Additional preview pages of the 1S1885 datasheet.

! Low cost ! Diffused juncton ! Low leakage ! Low forward voltage drop ! High current capability ! Easily cleaned with Freon,Alcohol,Isopropanol and similar solvents ! The plastic material carries U/L recognition 94V-0 Mechanical Data ! Case:JEDEC DO--15,molded plastic ! Terminals: Axial lead ,solderable per MIL- STD-202,Method 208 ! Polarity: Color band denotes cathode ! Weight: 0.014 ounces,0.39 grams ! Mounting position: Any A B A C D DO-15 Dim Min Max A 25.40.
B 5.50 7.
