1S1888A - Silicon Rectifier

1S1888A Description

1S1885A,1S1887A,1S1888A TOSHIBA Rectifiers Silicon Diffused Type 1S1885A,1S1887A,1S1888A General Purpose Rectifier Applications * Average Forward.

1S1888A Applications

* Average Forward Current: IF (AV) = 1.2 A (Ta = 60°C)
* Repetitive Peak Reverse Voltage: VRRM = 100 V, 400 V, 600 V
* Peak One Cycle Surge Forward Current (non repetitive) : IFSM = 100 A (50 Hz) Unit: mm Maximum Ratings (Ta = 25°C) Characteristics Repetitive peak reverse voltage 1S

📥 Download Datasheet

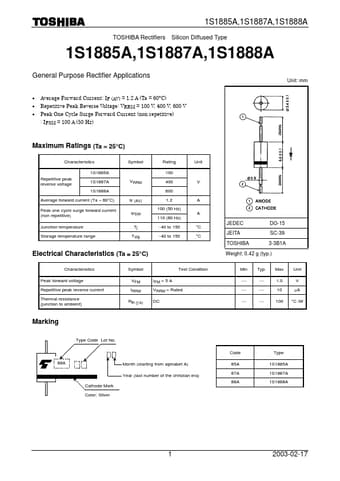

Preview of 1S1888A PDF
datasheet Preview Page 2 datasheet Preview Page 3
