1N60P

The 1N60P is SMALL SIGNAL SCHOTTKY DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1N60P, 1N60
Manufacturer	Sunmate
File Size	836.13 KB
Description	SMALL SIGNAL SCHOTTKY DIODES
Datasheet	1N60-Sunmate.pdf
Note	This datasheet PDF includes multiple part numbers: 1N60P, 1N60. Please refer to the document for exact specifications by model.

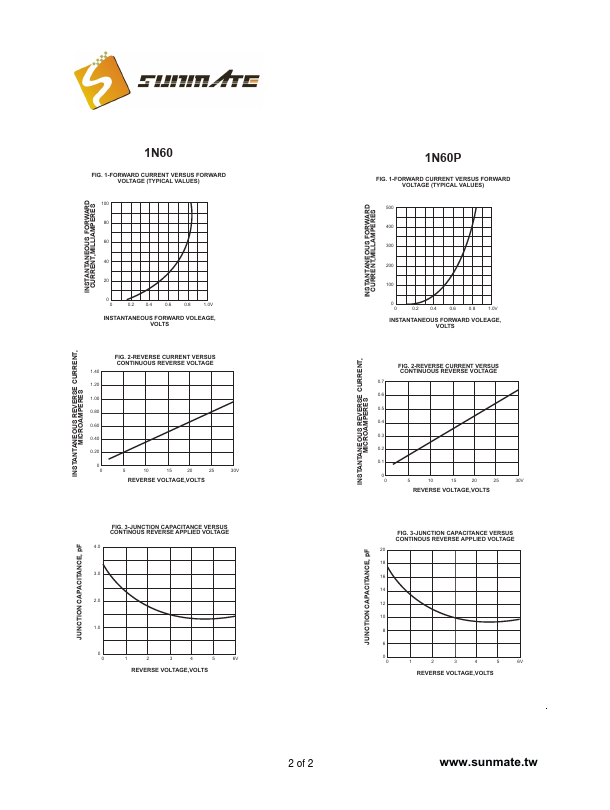

Additional preview pages of the 1N60P datasheet.

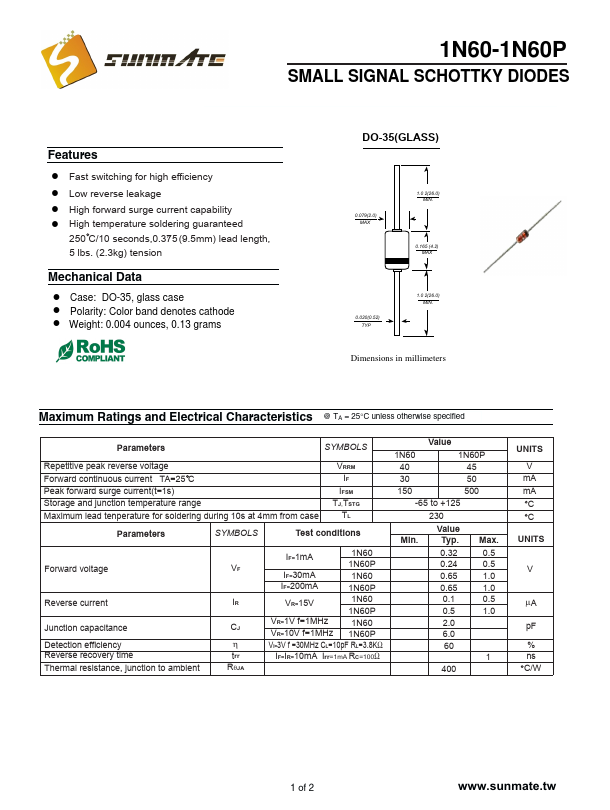

! Fast switching for high efficiency ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed 250 C/10 seconds,0.37”5 (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings and Electrical Characteristics @ T.
