1N60PW - Silicon Schottky Barrier Diode

1N60PW Datasheet Preview — Preview of 1N60PW PDF

Datasheet Details

Part number	1N60PW
Manufacturer	Youfeng
File Size	1.60 MB
Description	Silicon Schottky Barrier Diode
Datasheet	1N60PW-Youfeng.pdf

1N60PW Product details

Description

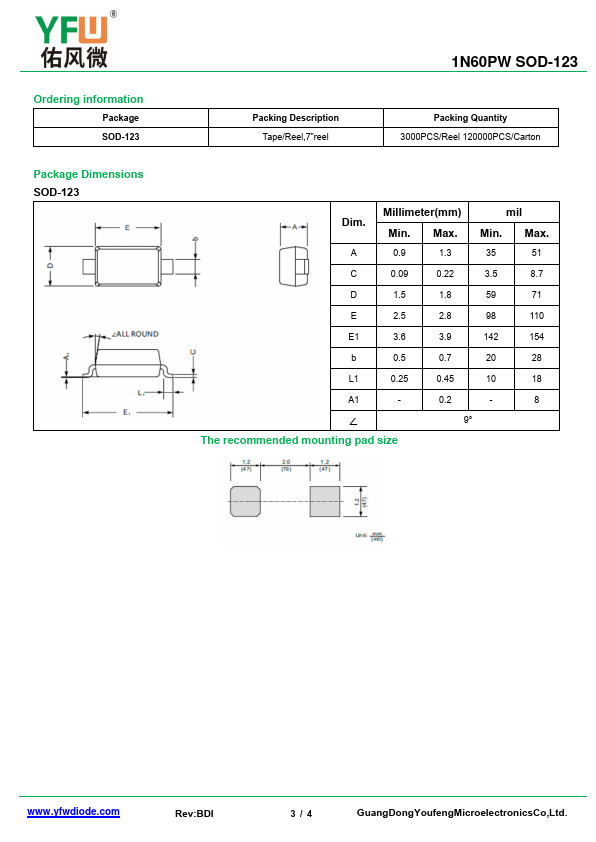

Tape/Reel,7”reel 1N60PW SOD-123 Packing Quantity 3000PCS/Reel 120000PCS/Carton Dim.Millimeter(mm) Min.Max.mil Min.Max.A 0.9 1.3 35 51 C 0.09 0.22 3.5 8.7 D 1.5 1.8 59 71 E 2.5 2.8 98 110 E1 3.6 3.9 142 154 b 0.5 0.7 20 28 L1 0.25 0.45 10 18 A1 - 0.2 - 8 ∠ 9° The recommended mounting pad size www.yfwdiode.com Rev:BDI 3/4 GuangDongYoufengMicroelectronicsCo,Ltd.Disclaimer 1N60PW SOD-123 The information presented in this document is for ref

Features

s.
Metal silicon junction, majority carrier conduction.
Ideal for used in detection or for switching on the radio, TV, etc. 1N60PW SOD-123 Pinning 1.Cathode 2.Anode 1 2 SOD-123 Marking Code 1N60P W FM.

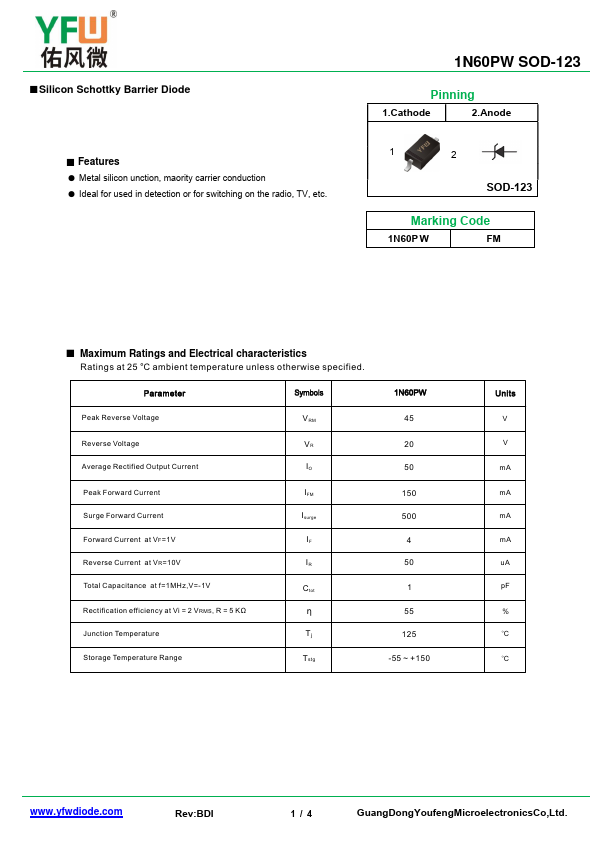

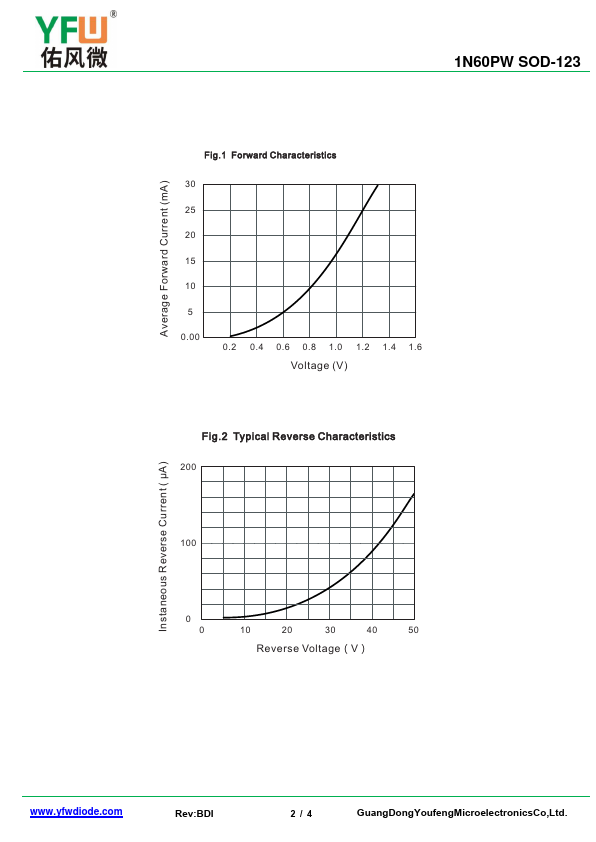

Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Parameter Symbols Peak Reverse Voltage VRM Reverse Voltage VR Average Rectified Output Current IO Peak Forward Current Surge Forward Current Forward Cu.
