1N60

The 1N60 is SMALL SIGNAL SCHOTTKY DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1N60
Manufacturer	Sunmate
File Size	836.13 KB
Description	SMALL SIGNAL SCHOTTKY DIODES
Datasheet	1N60-Sunmate.pdf

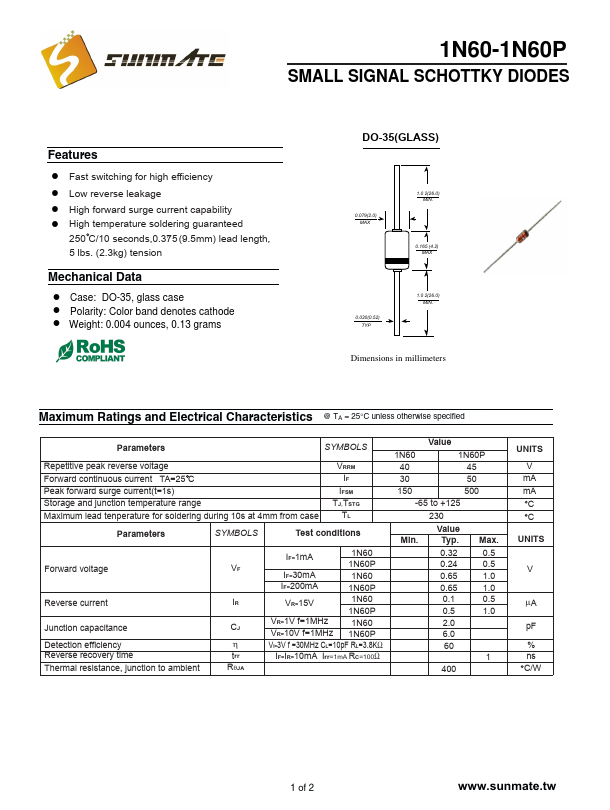

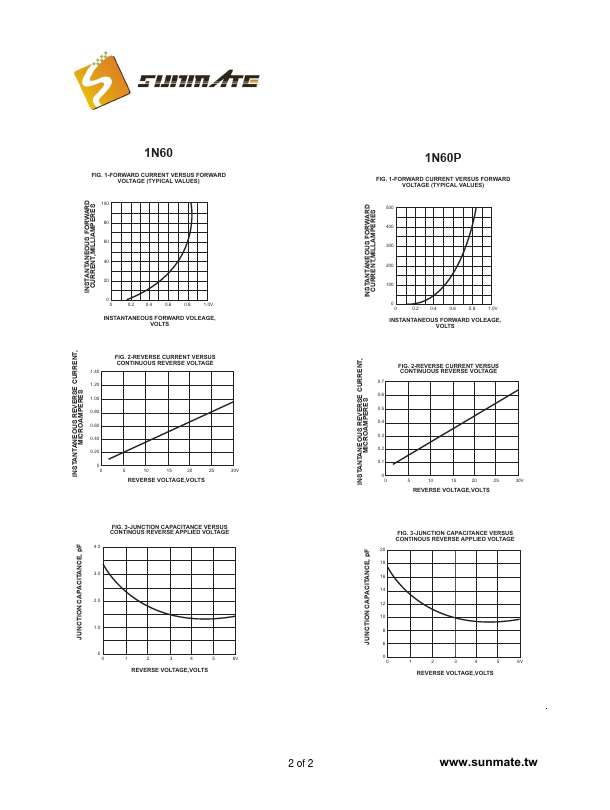

Additional preview pages of the 1N60 datasheet.

! Fast switching for high efficiency ! Low reverse leakage ! High forward surge current capability ! High temperature soldering guaranteed 250 C/10 seconds,0.37”5 (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings and Electrical Characteristics @ T.
