1N5711

The 1N5711 is SCHOTTKY BARRIER SWITCHING DIODE designed by Sunmate.

Product Overview

Sunmate

Part number	1N5711
Manufacturer	Sunmate
File Size	435.52 KB
Description	SCHOTTKY BARRIER SWITCHING DIODE
Datasheet	1N5711-Sunmate.pdf

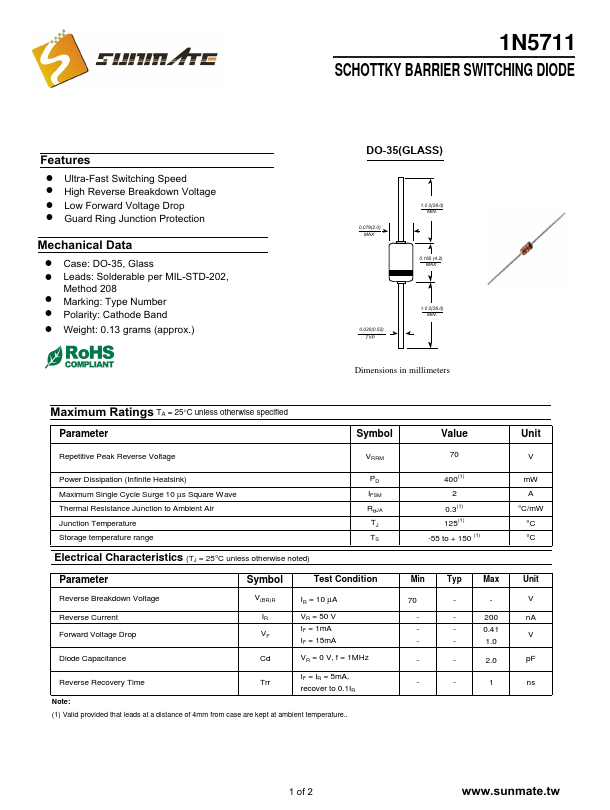

Additional preview pages of the 1N5711 datasheet.

! Ultra-Fast Switching Speed ! High Reverse Breakdown Voltage ! Low Forward Voltage Drop ! Guard Ring Junction Protection Mechanical Data ! Case: DO-35, Glass ! Leads: Solderable per MIL-STD-202, Method 208 ! Marking: Type Number ! Polarity: Cathode Band ! Weight: 0.13 grams (approx. ) DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings TA = 25°C unless otherwise specified Parameter Symbol Value Repetit.
