1N5711WS - SURFACE MOUNT SCHOTTKY BARRIER DIODES

Name: 1N5711WS
SKU: 1N5711WS-1590631

Sunmate

The 1N5711WS by Sunmate is a SURFACE MOUNT SCHOTTKY BARRIER DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	1N5711WS
Manufacturer	Sunmate
File Size	297.69 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODES
Datasheet	1N5711WS-Sunmate.pdf

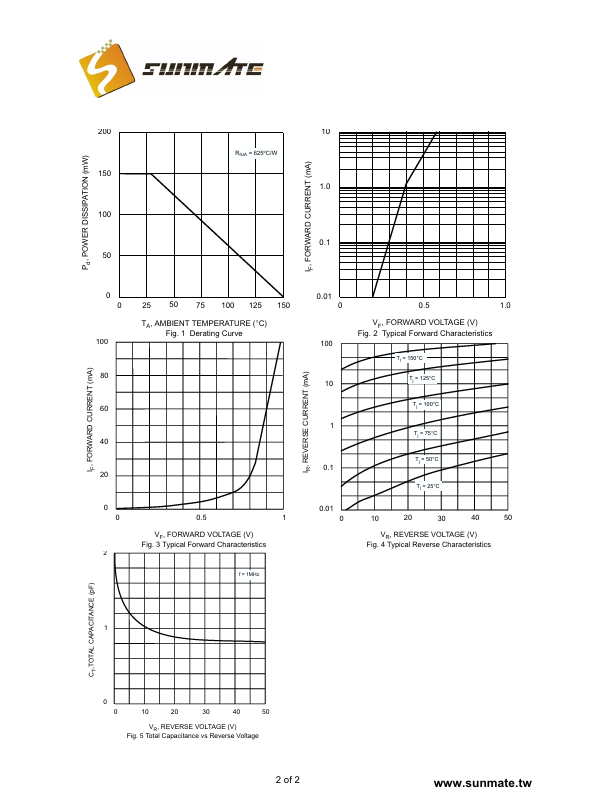

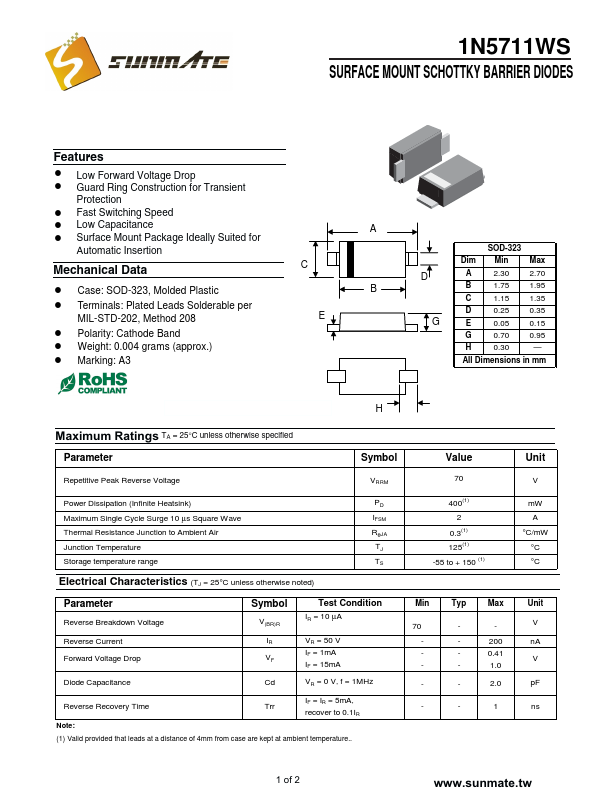

Additional preview pages of the 1N5711WS datasheet.

! Low Forward Voltage Drop ! Guard Ring Construction for Transient Protection ! Fast Switching Speed ! Low Capacitance A ! Surface Mount Package Ideally Suited for Automatic Insertion SOD-323 Mechanical Data ! Case: SOD-323, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.004 grams (approx. ) C Dim Min Max D A 2.30 2.70 B B 1.75 1.95 C 1.15 1.35 E D 0.25 0.35 G E 0.05 0.15 G 0.70 0.95 H 0.30.
