1N5400

The 1N5400 is AXIAL LEADED RECTIFIER DIODES designed by Sunmate.

Product Overview

Sunmate

Part number	1N5400
Manufacturer	Sunmate
File Size	123.21 KB
Description	AXIAL LEADED RECTIFIER DIODES
Datasheet	1N5400-Sunmate.pdf

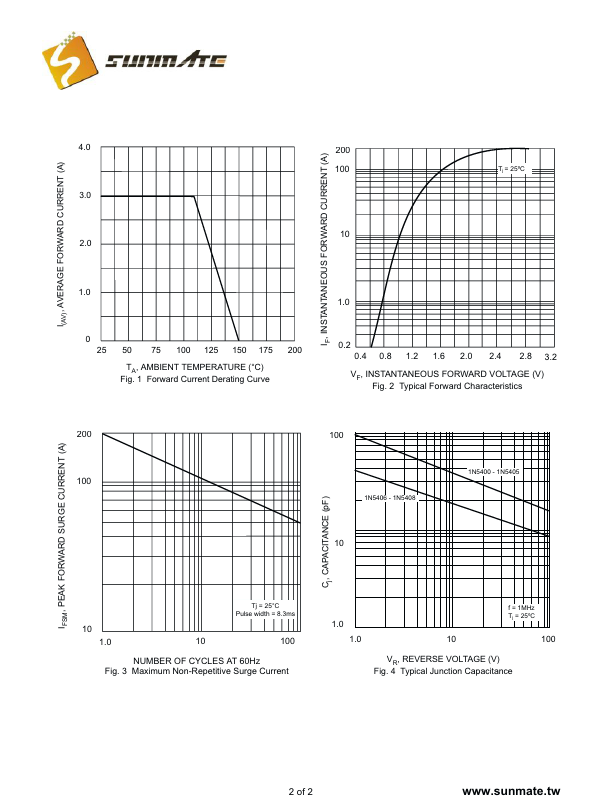

Additional preview pages of the 1N5400 datasheet.

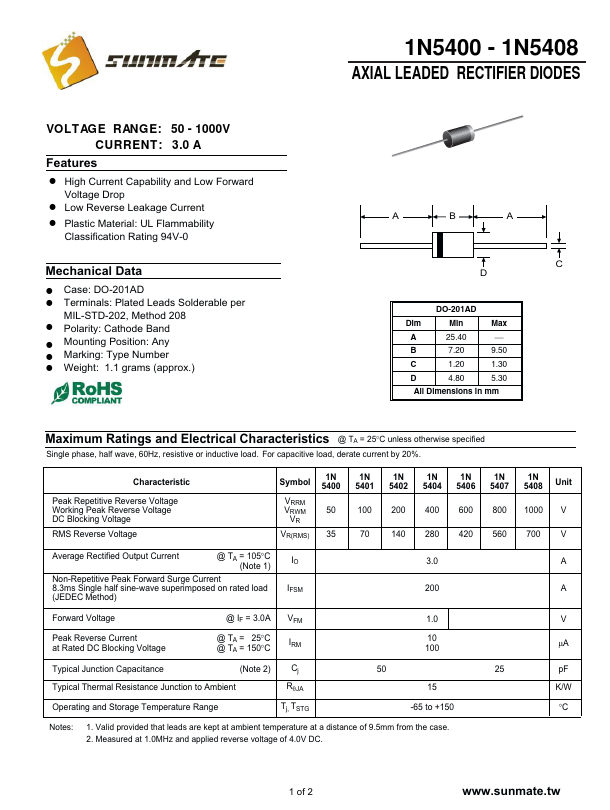

! High Current Capability and Low Forward Voltage Drop ! Low Reverse Leakage Current ! Plastic Material: UL Flammability Classification Rating 94V-0 Mechanical Data ! Case: DO-201AD ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Mounting Position: Any ! Marking: Type Number ! Weight: 1.1 grams (approx. ) A B A C D DO-201AD Dim Min Max A 25.40 ¾ B 7.20 9.50 C 1.20 1.30 D 4.80 5.30 All Dimensions in mm Maximum Ratings and Electrical.
