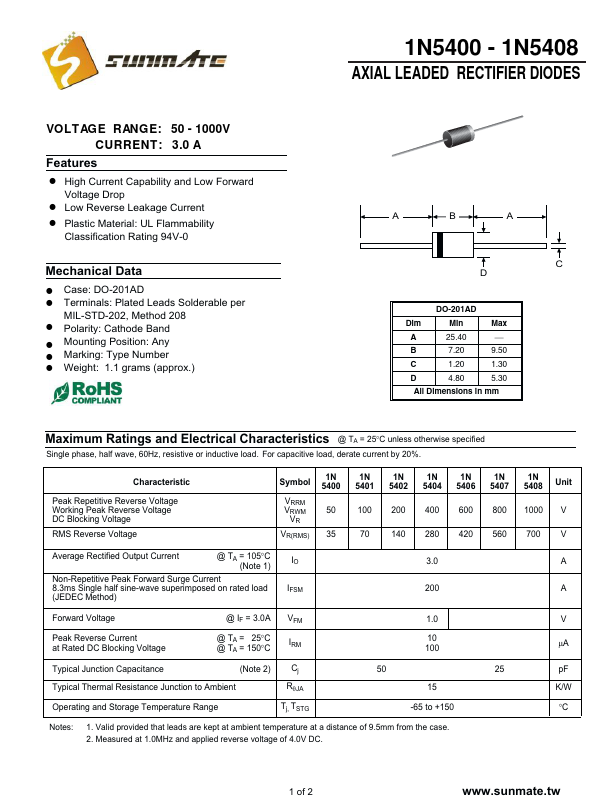

1N5400 - 1N5408
AXIAL LEADED RECTIFIER DIODES
VOLTAGE RANGE: 50 - 1000V CURRENT: 3.0 A
Features
! High Current Capability and Low Forward Voltage Drop
! Low Reverse Leakage Current ! Plastic Material: UL Flammability
Classification Rating 94V-0
Mechanical Data
! Case: DO-201AD ! Terminals: Plated Leads Solderable per
MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Mounting Position: Any ! Marking: Type Number ! Weight: 1.1 grams (approx.)
A
B
A
C D
DO-201AD
Dim
Min
Max
A
25.40
¾
B
7.20
9.50
C
1.20
1.30
D
4.80
5.30
All Dimensions in mm

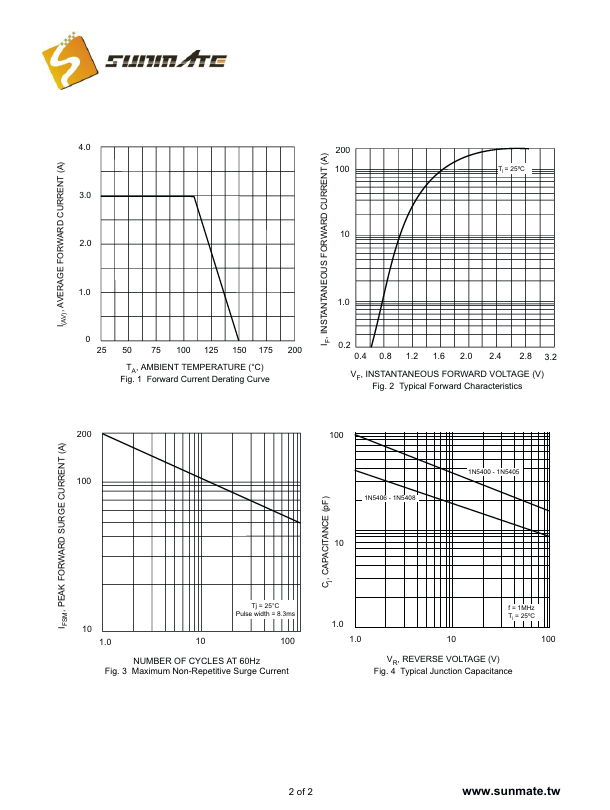

Maximum Ratings and Electrical Characteristics @ TA = 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
1N5408 Datasheet
