SCT2168 8-bit Serial-In/Parallel-Out Constant Current Driver

SCT2168 Description

StarChips Technology SCT2168 V01_01; May/09 8-bit Serial-In/Parallel-Out Constant Current Driver Product .
The SCT2168 serial-interfaced LED driver sinks 8 LED clusters with constant current to keep the uniform intensity of LED displays.

SCT2168 Features

* ‹ 8 constant current sinker with LED power-supply voltage up to 17V ‹ Constant output current : 5
* 120mA@5V, 3
* 80mA@3.3V ‹ Excellent current regulation to load, supply voltage and temperature ‹ ±1% Current matching between outputs ‹ ±3% Current matching between ICs ‹ Fast output c

SCT2168 Applications

* an external resistor is used to set the full-scale constant output current from 5mA up to 120mA. The SCT2168 guarantees each output can endure maximum 17V DC voltage stress. The built-in shift registers and data latches making the SCT2168 effective solution in driving LED display. The output enable

📥 Download Datasheet

Preview of SCT2168 PDF

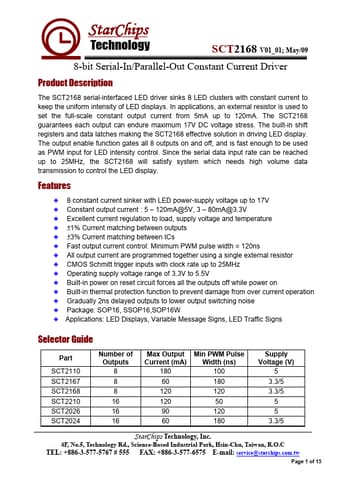

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SCT2168
Manufacturer
StarChips
File Size
473.90 KB
Datasheet
SCT2168-StarChips.pdf
Description
8-bit Serial-In/Parallel-Out Constant Current Driver
