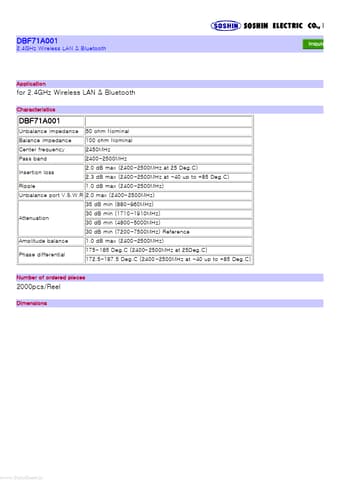

DBF71A001 Datasheet (Soshin) - 2.4GHz Wireless LAN&Bluetooth

DBF71A001, 2.4GHz Wireless LAN&Bluetooth

DBF71A001 2.4GHz Wireless LAN & Bluetooth Application for 2.4GHz Wireless LAN & Bluetooth Characteristics DBF71A001 Unbalance impedance Balance impedance Center frequency Pass band Insertion loss Ripple 50 ohm Nominal 100 ohm Nominal 2450MHz 2400-2500MHz 2.0 dB max (2400-2500MHz at 25 Deg.C) 2.3 dB max (2400-2500MHz at -40 up to +85 Deg.C) 1.0 dB max (2400-2500MHz) 35 dB min (880-960MHz) Attenuation 30 dB min (1710-1910MHz) 30 dB min (4800-5000MHz) 30 dB min (7200-7500MHz) Reference Amplitude
