DBF70A001 Datasheet - Soshin

DBF70A001 2.4GHz Wireless LAN&Bluetooth

DBF70A001 2.4GHz Wireless LAN & Bluetooth Application for 2.4GHz Wireless LAN & Bluetooth Characteristics DBF70A001 Unbalance impedance Balance impedance Center frequency Pass band Insertion loss Ripple 50 ohm Nominal 100 ohm Nominal 2450MHz 2400-2500MHz 2.0 dB max (2400-2500MHz at 25 Deg.C) 2.3 dB max (2400-2500MHz at -40 up to +85 Deg.C) 1.0 dB max (2400-2500MHz) 35 dB min (880-960MHz) Attenuation 30 dB min (1710-1910MHz) 30 dB min (4800-5000MHz) 30 dB min (7200-7500MHz) Reference Amplitude.

DBF70A001 Datasheet (86.14 KB)

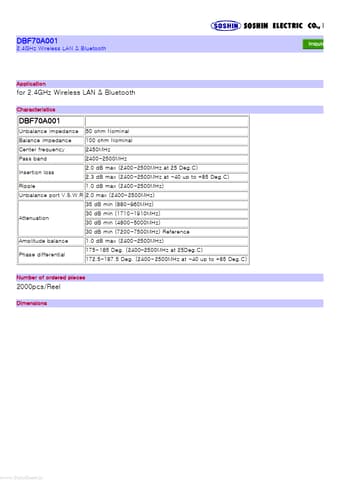

Preview of DBF70A001 PDF
DBF70A001 Datasheet Preview Page 2 DBF70A001 Datasheet Preview Page 3

Datasheet Details

Part number:

DBF70A001

Manufacturer:

Soshin

File Size:

86.14 KB

Description:

2.4ghz wireless lan&bluetooth.
