ILX734K - 10500 x 3 pixel CCD Linear Sensor

General Description

sensor developed for color image scanner, and has shutter function per each color.

This sensor reads A4-size documents at a density of 1200DPI.

Key Features

  • Number of effective pixels: 31500 pixels (10500 pixels × 3).
  • Pixel size: 8µm × 8µm (8µm pitch).
  • Distance between line: 64µm (8 Lines).
  • Single-sided readout.
  • Shutter funciton.
  • Ultra low lag/High sensitivity.
  • Single 12V power supply.
  • Input Clock Pulse: CMOS 5V drive.
  • Number of output 3 (R, G, B).
  • Package: 24 pin DIP (400 mil) Absolute Maximum Ratings.
  • Supply voltage VDD.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ILX75176 Slew-Rate-Limited RS-485/RS-422 Transceivers IK Semiconductor
ILX103A 3000-pixel CCD Linear Image Sensor Sony
ILX137K 10700-pixel x 6-line CCD Linear Sensor Sony
ILX146K The Industrys First Digital Copier CCD Linear Sensor ETC
ILX207DW Interface IC of data serial transfer Integral

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
ILX734LA 10500 X 3 pixel CCD Linear Sensor
ILX703A 2048-pixel CCD Linear Image Sensor
ILX716K 3648 X 3pixel CCD Linear Sensor
ILX718K 5363-pixel X 3 line CCD Linear Sensor
ILX724K 2700 X 3pixel CCD Linear Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

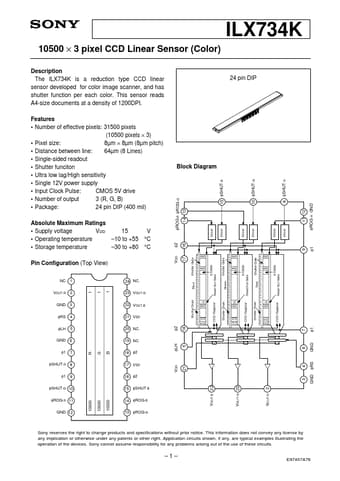

ILX734K 10500 × 3 pixel CCD Linear Sensor (Color) 15 φSHUT-B 10 φSHUT-G 8 φSHUT-R 11 12 φROG-R GND Driver Driver Driver Driver Driver Driver Description The ILX734K is a reduction type CCD linear sensor developed for color image scanner, and has shutter function per each color. This sensor reads A4-size documents at a density of 1200DPI.
