ILX514 - 3918-pixel CCD Linear Image Sensor

Description

The ILX514 is a reduction type CCD linear sensor developed for high resolution facsimiles and copiers.

This sensor reads A4-size documents at a density of 400 DPI (Dot Per Inch).

A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use.

Features

  • Number of effective pixels: 3918 pixels.
  • Pixel size: 7µm × 7µm (7µm pitch).
  • Built-in timing generator and clock-drivers.
  • Ultra low lag/ultra high sensitivity/low dark output.
  • Single output method.
  • Maximum clock frequency: 5MHz Absolute Maximum Ratings.
  • Supply voltage VDD1 VDD2.
  • Operating temperature.
  • Storage temperature Pin Configuration (Top View) 22 pin DIP (Cer-DIP) 11 6.
  • 10 to +60.
  • 30 to +80 V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ILX538K 2-Line Color CCD Linear Sensor ETC
ILX553B 5150-pixel CCD Linear Sensor Sony
ILX554B 2048-pixel CCD Linear Sensor Sony
ILX558K 5340-pixel x 3-line CCD Linear Sensor Sony
ILX103A 3000-pixel CCD Linear Image Sensor Sony

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
ILX510 5150-pixel CCD Linear Sensor
ILX511 2048-pixel CCD Linear Image Sensor
ILX516K 3648 X 3pixel CCD Linear Sensor
ILX518K 5363-pixel X 3 line CCD Linear Sensor
ILX503A 2048-pixel CCD Linear Image Sensor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

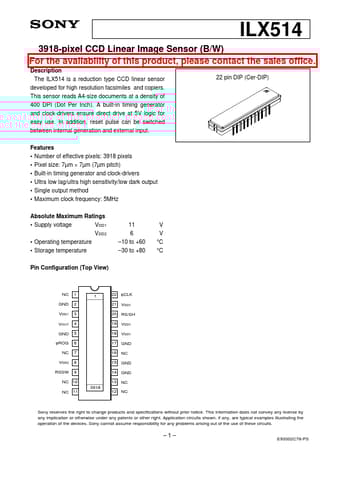

ILX514 3918-pixel CCD Linear Image Sensor (B/W) For the availability of this product, please contact the sales office. Description The ILX514 is a reduction type CCD linear sensor developed for high resolution facsimiles and copiers. This sensor reads A4-size documents at a density of 400 DPI (Dot Per Inch). A built-in timing generator and clock-drivers ensure direct drive at 5V logic for easy use. In addition, reset pulse can be switched between internal generation and external input.
