CXP922032 - CMOS 16-bit Single Chip Microcomputer

Product Overview

Sony Corporation

Datasheet Details

Part number	CXP922032
Manufacturer	Sony Corporation
File Size	307.13 KB
Description	CMOS 16-bit Single Chip Microcomputer
Datasheet	CXP922032 Datasheet

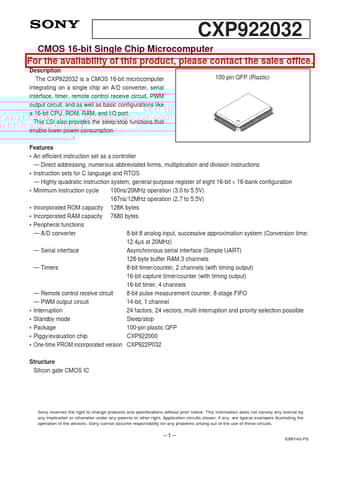

Additional preview pages of the CXP922032 datasheet.

Product details

Description

The CXP922032 is a CMOS 16-bit microcomputer integrating on a single chip an A/D converter, serial interface, timer, remote control receive circuit, PWM output circuit, and as well as basic configurations like a 16-bit CPU, ROM, RAM, and I/O port.

Features

An efficient instruction set as a controller.
Direct addressing, numerous abbreviated forms, multiplication and division instructions.
Instruction sets for C language and RTOS.
Highly quadratic instruction system, general-purpose register of eight 16-bit × 16-bank configuration.
Minimum instruction cycle 100ns/20MHz operation (3.0 to 5.5V) 167ns/12MHz operation (2.7 to 5.5V).
Incorporated ROM capacity 128K bytes.
Incorporated RAM ca.
