CXP912032 - CMOS 16-bit Single Chip Microcomputer

Description

The CXP912032 is a CMOS 16-bit micro-computer integrating on a single chip an A/D converter, serial interface with an incorporated buffer RAM, highprecision timing pattern generation function, pulse cycle measurement circuit, PWM generator, generalpurpose prescaler, vertical sync separation circuit,

Features

  • An efficient instruction set as a controller.
  • Direct addressing, numerous abbreviated forms, multiplication and division instructions.
  • Instruction sets for C language and RTOS.
  • Highly quadratic instruction system, general-purpose register of 16-bit × 8-pin × 16-bank configuration.
  • Minimum instruction cycle time 100ns at 20MHz Structure operation.
  • Incorporated ROM capacity 128K bytes Silicon gate CMOS IC.
  • Incorporated RAM capacity 61.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
CXP2003M CMOS Serial to Parallel Converter ETC
CXP401 SPC500 Series CPU core 6-KB ROM/ 400-word RAM LCD controller/driver on chip ETC
CXP50 Color Server for DocuColor 5000 Digital Press Manual Xerox
CXP80620A CMOS 8-Bit Single Chip Microcomputer Sony
CXP80624A (CXP80620A) CMOS 8-Bit Single Chip Microcomputer Sony

Other Datasheets by Sony Semiconductor Solutions

Part Number Description
CXP913040 CMOS 16-bit Single Chip Microcomputer
CXP913P048 CMOS 16-bit Single Chip Microcomputer
CXP921000A CMOS 16-bit Single Chip Microcomputer
CXP921064A CMOS 16-bit Single Chip Microcomputer
CXP922000 CMOS 16-bit Single Chip Microcomputer

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

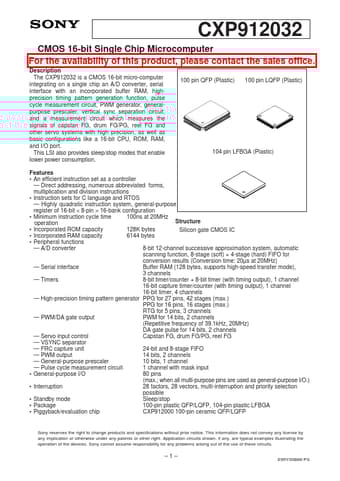

CXP912032 CMOS 16-bit Single Chip Microcomputer For the availability of this product, please contact the sales office. Description The CXP912032 is a CMOS 16-bit micro-computer integrating on a single chip an A/D converter, serial interface with an incorporated buffer RAM, highprecision timing pattern generation function, pulse cycle measurement circuit, PWM generator, generalpurpose prescaler, vertical sync separation circuit, and a measurement circuit which measures the signals of capstan FG, drum FG/PG, reel FG and other servo systems with high precision, as well as basic configurations like a 16-bit CPU, ROM, RAM, and I/O port. This LSI also provides sleep/stop modes that enable lower power consumption.
