CXL5514P - CMOS-CCD 1H Delay Line for PAL

Sony Corporation

📥 Download Datasheet

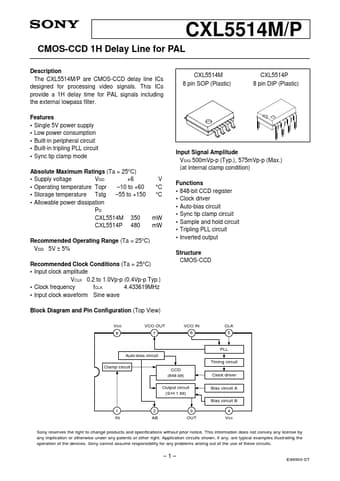

CXL5514P Datasheet Preview — Preview of CXL5514P PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXL5514P
Manufacturer	Sony Corporation
File Size	143.76 KB
Description	CMOS-CCD 1H Delay Line for PAL
Datasheet	CXL5514P_SonyCorporation.pdf

CXL5514P Product details

Description

The CXL5514M/P are CMOS-CCD delay line ICs designed for processing video signals.

Features

Single 5V power supply.
Low power consumption.
Built-in peripheral circuit.
Built-in tripling PLL circuit.
Sync tip clamp mode Absolute Maximum Ratings (Ta = 25°C).
Supply voltage VDD +6.
Operating temperature Topr.
10 to +60.
Storage temperature Tstg.
55 to +150.
Allowable power dissipation PD CXL5514M 350 CXL5514P 480 Recommended Operating Range (Ta = 25°C) VDD 5V ± 5% Recommended Clock Conditions.
