High Performance, 1-Axis and 3-Axis Accelerometers
Small, Low-Cost
Reliable Packaging with Screw-Down Mounting
Factory Calibrated
Applications
Automotive Testing
Instrumentation Equipment Monitoring
GP Series
The GP Series accelerometers are low cost, general purpose, linear acceleration and/or vibration sensors available in ranges of ±4g, ±10g, and ±25g.
Common applications are automotive testing, instrumentation, and equipment monitoring. The GP Series sensing element is a silicon micro-machined capacitive beam. The capacitive beam is held in force balance for full scale non-linearity of less than 0.2%.
The GP Series offers wide dynamic range, has excellent frequency response, operates on a single 4.9 to 5.

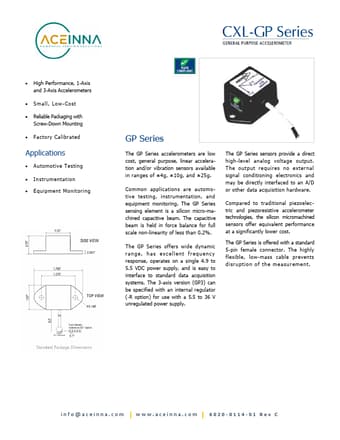

CXL04GP3 Datasheet
