CXL1501M - CMOS-CCD Signal Processor

Product Overview

Sony Corporation

📥 Download Datasheet

CXL1501M CMOS-CCD Signal Processor by Sony Corporation - Datasheet Preview — Datasheet preview – CXL1501M

Datasheet Details

Part number	CXL1501M
Manufacturer	Sony Corporation
File Size	181.59 KB
Description	CMOS-CCD Signal Processor
Datasheet	CXL1501M Datasheet

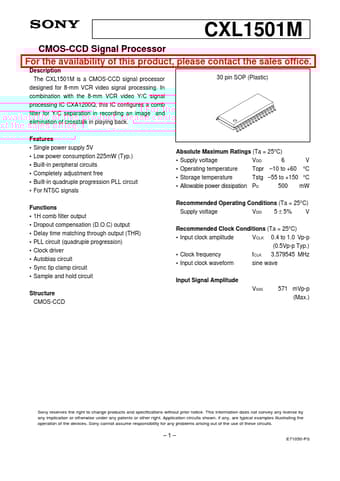

Additional preview pages of the CXL1501M datasheet.

Product details

Description

The CXL1501M is a CMOS-CCD signal processor designed for 8-mm VCR video signal processing.

Features

Single power supply 5V.
Low power consumption 225mW (Typ. ).
Built-in peripheral circuits.
Completely adjustment free.
Built-in quadruple progression PLL circuit.
For NTSC signals Functions.
1H comb filter output.
Dropout compensation (D. O. C) output.
Delay time matching through output (THR).
PLL circuit (quadruple progression).
Clock driver.
Autobias circuit.
Sync tip clamp circui.
