CXD2300Q - 8-bit 18MSPS Video A/D Converter with 3.3V Power Supply Operation Function

Product Overview

Sony Corporation

📥 Download Datasheet

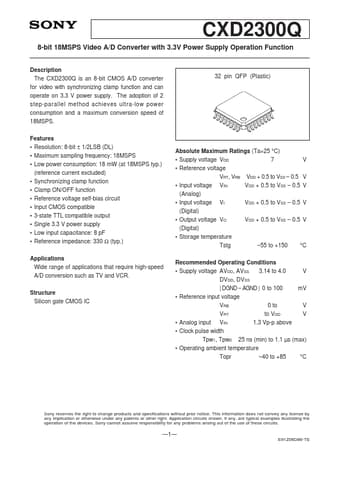

CXD2300Q 8-bit 18MSPS Video A/D Converter with 3.3V Power Supply Operation Function by Sony Corporation - Datasheet Preview — Datasheet preview – CXD2300Q

Datasheet Details

Part number	CXD2300Q
Manufacturer	Sony Corporation
File Size	202.19 KB
Description	8-bit 18MSPS Video A/D Converter with 3.3V Power Supply Operation Function
Datasheet	CXD2300Q Datasheet
Additional preview pages of the CXD2300Q datasheet.

Product details

Description

The CXD2300Q is an 8-bit CMOS A/D converter for video with synchronizing clamp function and can operate on 3.3 V power supply.

Features

Resolution: 8-bit ± 1/2LSB (DL).
Maximum sampling frequency: 18MSPS.
Low power consumption: 18 mW (at 18MSPS typ. ) (reference current excluded).
Synchronizing clamp function.
Clamp ON/OFF function Reference voltage self-bias circuit Input CMOS compatible 3-state TTL compatible output Single 3.3 V power supply Low input capacitance: 8 pF Reference impedance: 330 Ω (typ. ) 32 pin QFP (Plastic).
