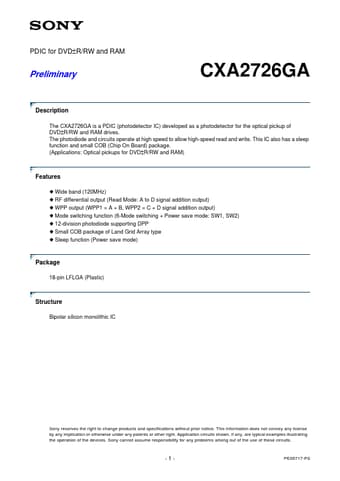

CXA2726GA Datasheet Preview — Preview of CXA2726GA PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA2726GA
Manufacturer	Sony Corporation
File Size	290.60 KB
Description	PDIC
Datasheet	CXA2726GA_SonyCorporation.pdf

CXA2726GA Product details

Description

The CXA2726GA is a PDIC (photodetector IC) developed as a photodetector for the optical pickup of DVD±R/RW and RAM drives.

Features

Wide band (120MHz) RF differential output (Read Mode: A to D signal addition output) WPP output (WPP1 = A + B, WPP2 = C + D signal addition output) Mode switching function (6-Mode switching + Power save mode: SW1, SW2) 12-division photodiode supporting DPP Small COB package of Land Grid Array type Sleep function (Power save mode) Package 18-pin LFLGA (Plastic) Structure Bipolar silicon monolithic IC Sony reserves the right to change products and specifications without prior noti.
