CXA2 - Studio LED

Description

The XLamp® CXA2 Studio LED is optimized for motion picture, studio and photography applications, delivering high light quality that meets the film industry’s color spectrum requirements combined with high lumen output and high optical control.

Features

  • CXA Gen 2 technology and platform.
  • Available in SU white bins at 5600 K and 3200 K CCT with 90 CRI.
  • Forward voltage options: 36 V & 72 V class.
  • 85 °C binning and characterization.
  • Maximum drive current: 3600 mA (36 V), 1800 mA (72 V).
  • 115° viewing angle, uniform chro.

📥 Download Datasheet

📁 Similar Datasheet

  • CXA20-48D05J - DC-DC / Low Power Isolated Industrial (Emerson)
  • CXA20-48D12J - DC-DC / Low Power Isolated Industrial (Emerson)
  • CXA20-48D12Y - DC-DC / Low Power Isolated Industrial (Emerson)
  • CXA20-48S05J - DC-DC / Low Power Isolated Industrial (Emerson)
  • CXA20-48S05Y - DC-DC / Low Power Isolated Industrial (Emerson)
  • CXA20-48S12J - DC-DC / Low Power Isolated Industrial (Emerson)
  • CXA20-48S12Y - DC-DC / Low Power Isolated Industrial (Emerson)
  • CXA20-48S3V3J - DC-DC / Low Power Isolated Industrial (Emerson)
  • CXA20-48S3V3Y - DC-DC / Low Power Isolated Industrial (Emerson)
  • CXA2000Q - Y/C/RGB/D for PAL/NTSC Color TVs (Sony Corporation)
Other Datasheets by CREE

Full PDF Text Transcription

Click to expand full text

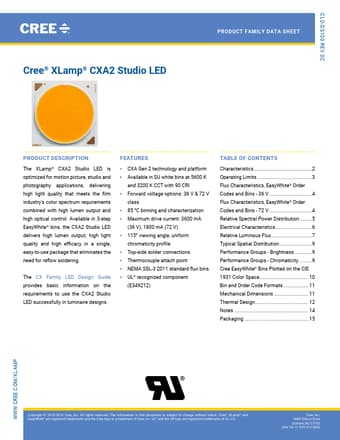

CLD-DS100 Rev 0C Cree® XLamp® CXA2 Studio LED Product family data sheet Product Description The XLamp® CXA2 Studio LED is optimized for motion picture, studio and photography applications, delivering high light quality that meets the film industry’s color spectrum requirements combined with high lumen output and high optical control. Available in 3-step EasyWhite® bins, the CXA2 Studio LED delivers high lumen output, high light quality and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. The CX Family LED Design Guide provides basic information on the requirements to use the CXA2 Studio LED successfully in luminaire designs.
