CXA2125Q - Audio/Video Switch with Electronic Volume for 3 Scart

Sony Corporation

📥 Download Datasheet

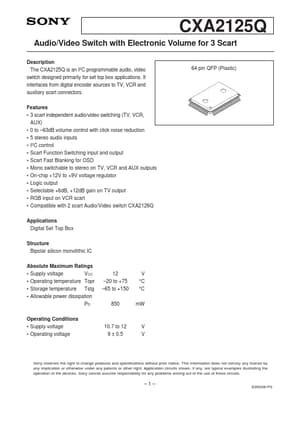

CXA2125Q Datasheet Preview — Preview of CXA2125Q PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA2125Q
Manufacturer	Sony Corporation
File Size	399.89 KB
Description	Audio/Video Switch with Electronic Volume for 3 Scart
Datasheet	CXA2125Q_SonyCorporation.pdf

CXA2125Q Product details

Description

The CXA2125Q is an I2C programmable audio, video switch designed primarily for set top box applications.

Features

3 scart independent audio/video switching (TV, VCR, AUX).
0 to.
63dB volume control with click noise reduction.
5 stereo audio inputs.
I2C control.
Scart Function Switching input and output.
Scart Fast Blanking for OSD.
Mono switchable to stereo on TV, VCR and AUX outputs.
On-chip +12V to +9V voltage regulator.
Logic output.
Selectable +6dB, +12dB gain on TV output.
RGB input on VCR scart.
