CXA1819Q - RGB Driver for LCD

Sony Corporation

📥 Download Datasheet

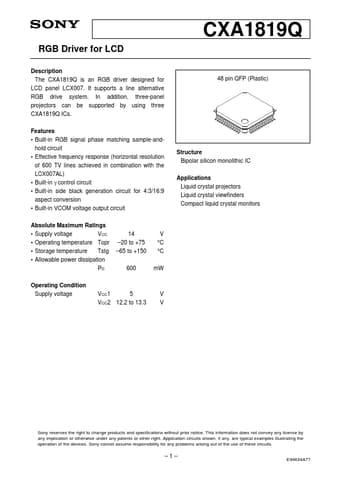

CXA1819Q Datasheet Preview — Preview of CXA1819Q PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CXA1819Q
Manufacturer	Sony Corporation
File Size	387.81 KB
Description	RGB Driver for LCD
Datasheet	CXA1819Q_SonyCorporation.pdf

CXA1819Q Product details

Description

The CXA1819Q is an RGB driver designed for LCD panel LCX007.

Features

Built-in RGB signal phase matching sample-andhold circuit.
Effective frequency response (horizontal resolution of 600 TV lines achieved in combination with the LCX007AL).
Built-in γ control circuit.
Built-in side black generation circuit for 4:3/16:9 aspect conversion.
Built-in VCOM voltage output circuit Absolute Maximum Ratings.
Supply voltage VCC.
Operating temperature Topr.
Storage temperature Tstg.
Allowable p.
