CXA1810AR - Luminance and Color Signal Processing for 8mm VCR

Sony Corporation

Datasheet Details

Part number	CXA1810AR
Manufacturer	Sony Corporation
File Size	969.91 KB
Description	Luminance and Color Signal Processing for 8mm VCR
Datasheet	CXA1810AR_SonyCorporation.pdf

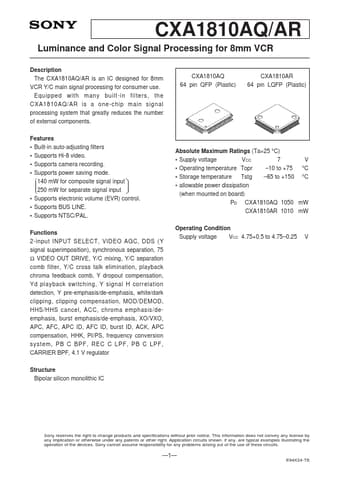

The CXA1810AQ/AR is an IC designed for 8mm VCR Y/C main signal processing for consumer use.

Built-in auto-adjusting filters.
Supports Hi-8 video.
Supports camera recording.
Supports power saving mode. 140 mW for composite signal input 250 mW for separate signal input.
Supports electronic volume (EVR) control.
Supports BUS LINE.
Supports NTSC/PAL. Functions 2-input INPUT SELECT, VIDEO AGC, DDS (Y signal superimposition), synchronous separation, 75 Ω VIDEO OUT DRIVE, Y/C mixing, Y/C separation comb filter, Y/C cross talk.
