CXA1145M - RGB Encoder

Name: CXA1145M
SKU: CXA1145M-199041

Sony Corporation

📥 Download Datasheet

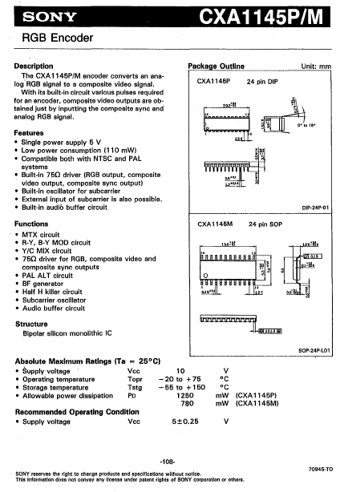

CXA1145M Datasheet Preview — Preview of CXA1145M PDF

Datasheet Details

Part number	CXA1145M
Manufacturer	Sony Corporation
File Size	362.07 KB
Description	RGB Encoder
Datasheet	CXA1145M_SonyCorporation.pdf

CXA1145M Product details

Description

The CXA 1145P/M encoder converts an ana- log.RGB signal to a composite video signal.With its built-in circuit various pulses required for an encoder, composite video outputs are obtained just by inputting the composite sync and analog RGB signal.

Features

Single power supply 5 V.
Low power consumption (11 0 mWI.
Compatible both with NTSC and PAL systems.
Built-in 750 driver (RGB output, composite video output, composite sync output).
Built-in oscillator for subcarrier.
External input of subcarrier is also possible.
Built-in audio buffer circuit Functions.
MTX circuit.
R-Y, B-Y MOD circuit.
Y/C MIX circuit.
750 driver for RGB, composite video and c.
