CX77304-17 - PA Module for Tri-Band EGSM DCS PCS / GPRS

Skyworks Solutions

The CX77304-17 by Skyworks Solutions is a PA Module for Tri-Band EGSM DCS PCS / GPRS. Below is the official datasheet preview.

📥 Download Datasheet

CX77304-17 PA Module for Tri-Band EGSM DCS PCS / GPRS by Skyworks Solutions - Datasheet Preview — Official preview page of the **CX77304-17** PA Module for Tri-Band EGSM DCS PCS / GPRS datasheet (Skyworks Solutions).

Datasheet Details

Part number	CX77304-17
Manufacturer	Skyworks Solutions
File Size	605.64 KB
Description	PA Module for Tri-Band EGSM DCS PCS / GPRS
Datasheet	CX77304-17_SkyworksSolutions.pdf

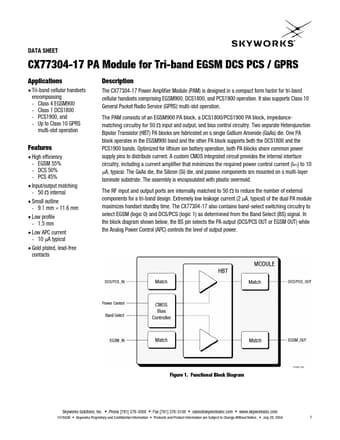

Additional preview pages of the CX77304-17 datasheet.

CX77304-17 Product details

Description

The CX77304-17 Power Amplifier Module (PAM) is designed in a compact form factor for tri-band cellular handsets comprising EGSM900, DCS1800, and PCS1900 operation.

Features

High efficiency - EGSM 55% - DCS 50% - PCS 45%.
Input/output matching - 50 Ω internal.
Small outline - 9.1 mm × 11.6 mm.
Low profile - 1.5 mm.
Low APC current - 10 µA typical.
Gold plated, lead-free contacts The PAM consists of an EGSM900 PA block, a DCS1800/PCS1900 PA block, impedancematching circuitry for 50 Ω input and output, and bias control circuitry. Two separate Heterojunction Bipolar Transistor (HBT) PA blocks are fabricated on a s.
