CX74002 - Silicon Germanium CDMA Transmit/Dual PLL RFlC

The CX74002 by ETC is a Silicon Germanium CDMA Transmit/Dual PLL RFlC. Below is the official datasheet preview.

Datasheet Details

Part number	CX74002
Manufacturer	ETC
File Size	204.63 KB
Description	Silicon Germanium CDMA Transmit/Dual PLL RFlC
Datasheet	CX74002_ETC.pdf

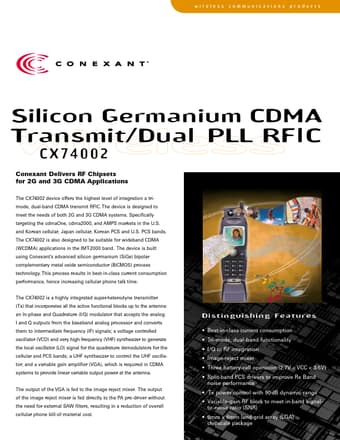

Additional preview pages of the CX74002 datasheet.

Best-in-class current consumption.
Tri-mode, dual-band functionality.
I /Q to RF integration.
Image-reject mixer.
Three battery-cell operation (2.7V < VCC < 3.6V).
Split-band PCS drivers to improve Rx Band noise performance.
Tx power control with 90 dB dynamic range.
Variable-gain RF block to meet in-band signalto -noise ratio (SNR).
6mm x 6mm land grid array (LGA) chipscale package The output of the VGA is fed to.
