AS222-92LF, AS222-92 PHEMT GaAs IC SPDT Switch

AS222-92LF Description

DATA SHEET AS222-92, AS222-92LF: PHEMT GaAs IC SPDT Switch 0.1 to 3 GHz Applications * T/R switch for WLAN, Bluetooth® and mediumpower teleco.
The AS222-92 is a medium-power IC FET SPDT switch in a low-cost miniature SC-70 6-lead plastic package.

AS222-92LF Features

* Low insertion loss
* Isolation 22 dB @ 2.4 GHz
* Low DC power consumption
* Operates with 1.8 V control voltage

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AS222-92LF, AS222-92. Please refer to the document for exact specifications by model.

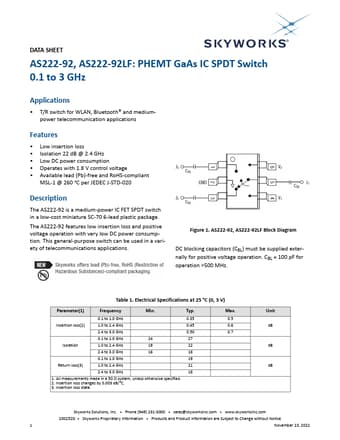

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS222-92LF, AS222-92
Manufacturer
Skyworks Solutions
File Size
917.25 KB
Datasheet
AS222-92_SkyworksSolutions.pdf
Description
PHEMT GaAs IC SPDT Switch
Note
This datasheet PDF includes multiple part numbers: AS222-92LF, AS222-92.
Please refer to the document for exact specifications by model.
