AS2214 Primary Side PWM Controller

AS2214 Description

AS2214 Primary Side PWM Controller .
The AS2214 is a full featured, pulse width modulation controller.

AS2214 Features

* Low Startup Current
* Bulk and AC sensing
* Soft Start
* Single-start or auto-restart modes
* Oscillator trimmed for precision duty cycle clamp
* Standard temperature range extended to 105°C
* Remote on / off control
* Buffered Ramp f

📥 Download Datasheet

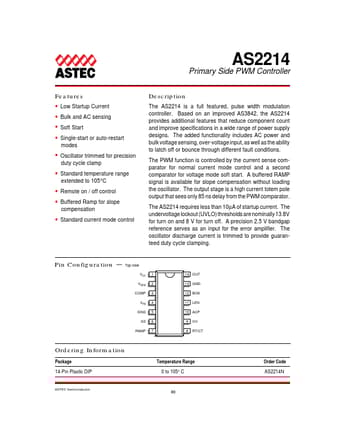

Preview of AS2214 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AS2214
Manufacturer
ASTEC
File Size
53.04 KB
Datasheet
AS2214-ASTEC.pdf
Description
Primary Side PWM Controller
