SP9843, SP9840 4-Quadrant Multiplying BiCMOS DAC

SP9843 Description

SP9840/43 8-Bit Octal, 4-Quadrant Multiplying, BiCMOS DAC s Replaces 8 Potentiometers and 8 Op amps s Operates from Single +5V Supply s 5 MHz 4-Quadra.
The SP9840 and SP9843 are general purpose octal DACs in a single package.

SP9843 Features

* eight individual reference inputs, while the SP9843 provides four pair of voltage reference inputs. Both parts feature 5MHz bandwidth, four
* quadrant multiplication, and a three
* wire serial interface. Other features include midscale preset, programmable signal inversion and low power

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SP9843, SP9840. Please refer to the document for exact specifications by model.

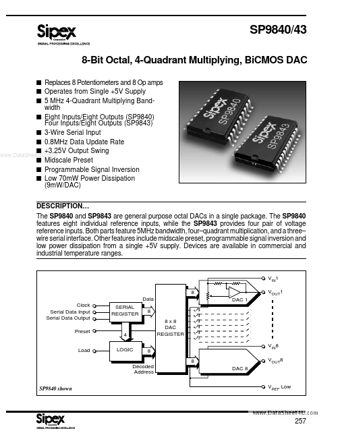

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP9843, SP9840
Manufacturer
Sipex Corporation
File Size
164.94 KB
Datasheet
SP9840_SipexCorporation.pdf
Description
4-Quadrant Multiplying BiCMOS DAC
Note
This datasheet PDF includes multiple part numbers: SP9843, SP9840.
Please refer to the document for exact specifications by model.
