SP9842, SP9841 BiCMOS DAC

SP9842 Description

SP9841/42 8-Bit Octal, 2-Quadrant Multiplying, BiCMOS DAC s Replaces 8 Potentiometers and 8 Op Amps s Operates from Single +5V Supply s 6.3 MHz 2-Quad.
The SP9841 and SP9842 are general purpose octal DACs in a single package.

SP9842 Features

* eight individual reference inputs, while the SP9842 provides four pair of voltage reference inputs. Both parts feature 6.3MHz bandwidth, two
* quadrant multiplication, and a three
* wire serial interface. Other features include midscale preset, no signal inversion and low power dissipati

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SP9842, SP9841. Please refer to the document for exact specifications by model.

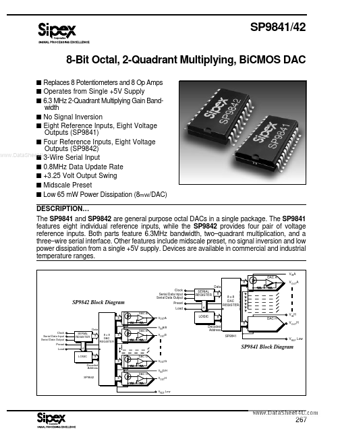

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SP9842, SP9841
Manufacturer
Sipex Corporation
File Size
792.88 KB
Datasheet
SP9841_SipexCorporation.pdf
Description
BiCMOS DAC
Note
This datasheet PDF includes multiple part numbers: SP9842, SP9841.
Please refer to the document for exact specifications by model.
