SM7302ESKP - Dual N-Channel MOSFET

Description

G2S2 S2S2 G1D1D1D1 S1/D2 D1 DUAL DFN5x6-8 Pin1 D1 (2) (3) (4) S1/D2 G1 (1) G2 (8)

DC/DC Converters.

Features

  • Channel 1 30V/48A, RDS(ON) = 7mW (max. ) @ VGS = 10V RDS(ON) = 10mW (max. ) @ VGS = 4.5V.
  • Channel 2 (Integrated Schottky Diode) 30V/50A, RDS(ON) = 4mW (max. ) @ VGS =10V RDS(ON) = 5.9mW (max. ) @ VGS =4.5V.
  • 100% UIS Tested.
  • Reliable and Rugged.
  • Lead Free Available (RoHS Compliant).

📥 Download Datasheet

Datasheet Details

Part number SM7302ESKP
Manufacturer Sinopower
File Size 366.44 KB
Description Dual N-Channel MOSFET
Datasheet download datasheet SM7302ESKP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SM7302ESKP Dual N-Channel 30V MOSFET VBsemi
SM7302 Non-isolated BUCK constant current control power switch Linkage
SM7301 Specification of Programming FLASH SyncMOS
SM7301 high power factor LED driver Linkage
SM7307 Non-Isolated BUCK Constant current control power switch Sunmoon

Other Datasheets by Sinopower

Part Number Description
SM7303ESKP Dual N-Channel MOSFET
SM7304ESKP Dual N-Channel MOSFET
SM7305ESKP Dual N-Channel MOSFET
SM7306ESKP Dual N-Channel MOSFET
SM7307DSKP Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

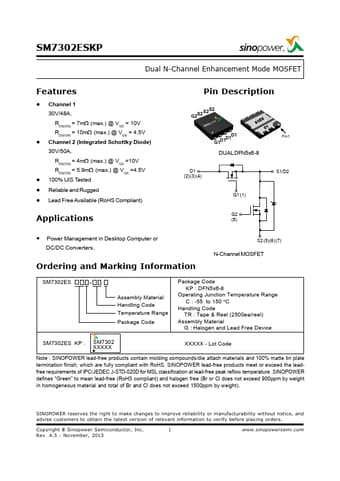

SM7302ESKP ® Dual N-Channel Enhancement Mode MOSFET Features · Channel 1 30V/48A, RDS(ON) = 7mW (max.) @ VGS = 10V RDS(ON) = 10mW (max.) @ VGS = 4.5V · Channel 2 (Integrated Schottky Diode) 30V/50A, RDS(ON) = 4mW (max.) @ VGS =10V RDS(ON) = 5.9mW (max.) @ VGS =4.5V · 100% UIS Tested · Reliable and Rugged · Lead Free Available (RoHS Compliant) Applications Pin Description G2S2 S2S2 G1D1D1D1 S1/D2 D1 DUAL DFN5x6-8 Pin1 D1 (2) (3) (4) S1/D2 G1 (1) G2 (8) · Power Management in Desktop Computer or DC/DC Converters.
