SM3307PSQA - P-Channel MOSFET

Sinopower

📥 Download Datasheet

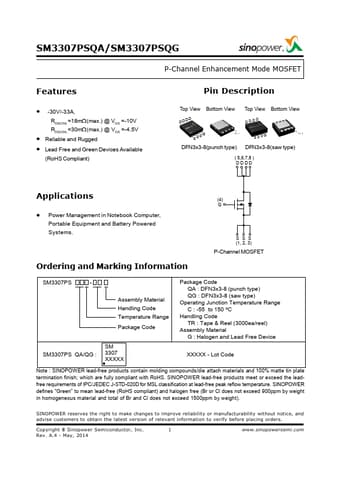

SM3307PSQA Datasheet Preview — Preview of SM3307PSQA PDF

Datasheet Details

Part number	SM3307PSQA
Manufacturer	Sinopower
File Size	312.06 KB
Description	P-Channel MOSFET
Datasheet	SM3307PSQA-Sinopower.pdf

SM3307PSQA Product details

Description

Top View Bottom View DDDD Top View Bottom View DDDD SSSG DFN3x3-8(punch type) SSSG DFN3x3-8(saw type) ( 5,6,7,8 ) DD DD Applications Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems.(4) G SSS (1, 2, 3) P-Channel MOSFET Ordering and Marking Information SM3307PS Assembly Material Handling Code Temperature Range Package Code SM3307PS QA/QG : SM 3307 XXXXX Package Code QA : DFN3x3-8 (punch type) QG : DFN3x3-8 (saw type) Operating Junction Temp

Features

-30V/-33A, RDS(ON) =18mW(max. ) @ VGS =-10V RDS(ON) =30mW(max. ) @ VGS =-4.5V.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant) Pin.
