SM3303PSQG - P-Channel MOSFET

Sinopower

📥 Download Datasheet

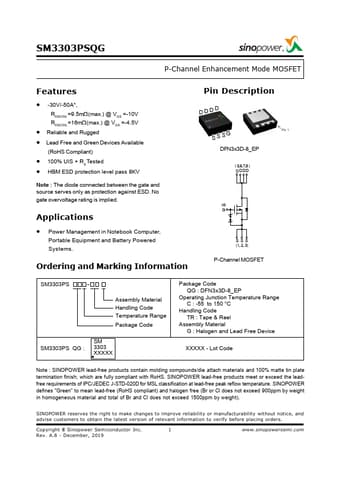

SM3303PSQG Datasheet Preview — Preview of SM3303PSQG PDF

Datasheet Details

Part number	SM3303PSQG
Manufacturer	Sinopower
File Size	252.48 KB
Description	P-Channel MOSFET
Datasheet	SM3303PSQG-Sinopower.pdf

SM3303PSQG Product details

Description

DDDD SS SG DFN3x3D-8_EP ( 5,6,7,8 ) D D DD (4) G SSS (1, 2, 3) P-Channel MOSFET SM3303PS Assembly Material Handling Code Temperature Range Package Code SM3303PS QG : SM 3303 XXXXX Package Code QG : DFN3x3D-8_EP Operating Junction Temperature Range C : -55 to 150 oC Handling Code TR : Tape & Reel Assembly Material G : Halogen and Lead Free Device XXXXX - Lot Code Note : SINOPOWER lead-free products contain molding compounds/die attach materials and 100% matte tin plate termination finish; w

Features

-30V/-50A.
, RDS(ON) =9.5mW(max. ) @ VGS =-10V RDS(ON) =16mW(max. ) @ VGS =-4.5V.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant).
100% UIS + Rg Tested.
HBM ESD protection level pass 8KV Note : The diode connected between the gate and source serves only as protection against ESD. No gate overvoltage rating is implied.
