SM1A57NHG - N-Channel Enhancement Mode MOSFET

Sinopower

The SM1A57NHG by Sinopower is a N-Channel Enhancement Mode MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

SM1A57NHG N-Channel Enhancement Mode MOSFET by Sinopower - Datasheet Preview — Official preview page of the SM1A57NHG N-Channel Enhancement Mode MOSFET datasheet (Sinopower).

Datasheet Details

Part number	SM1A57NHG
Manufacturer	Sinopower
File Size	493.76 KB
Description	N-Channel Enhancement Mode MOSFET
Datasheet	SM1A57NHG-Sinopower.pdf
Additional preview pages of the SM1A57NHG datasheet.

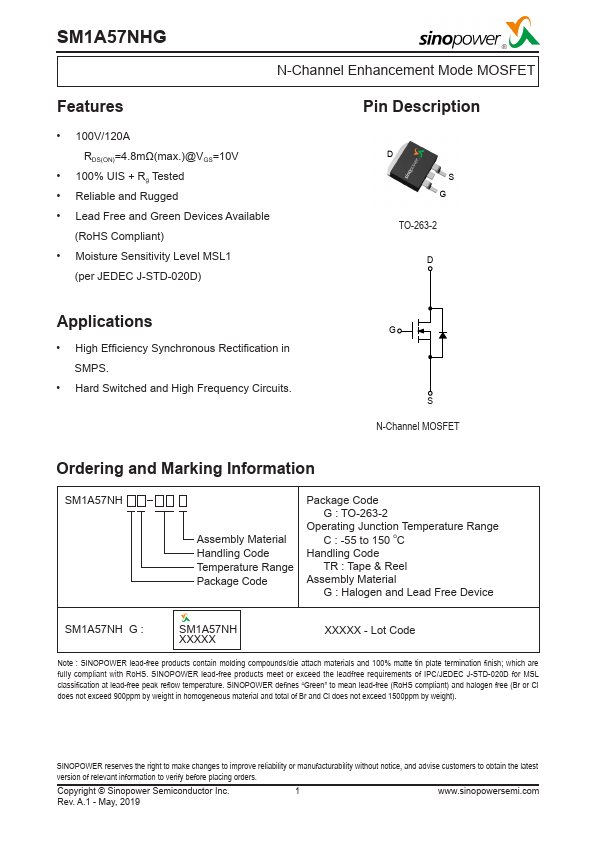

SM1A57NHG Product details

Description

D S G TO-263-2 D Applications High Efficiency Synchronous Rectification in SMPS. Hard Switched and High Frequency Circuits.

Features

100V/120A RDS(ON)=4.8mΩ(max. )@VGS=10V.
100% UIS + Rg Tested.
Reliable and Rugged.
Lead Free and Green Devices Available (RoHS Compliant).
Moisture Sensitivity Level MSL1 (per JEDEC J-STD-020D) Pin.
