XT2057 - High Accuracy Linear Li-ion Battery Charger

📥 Download Datasheet

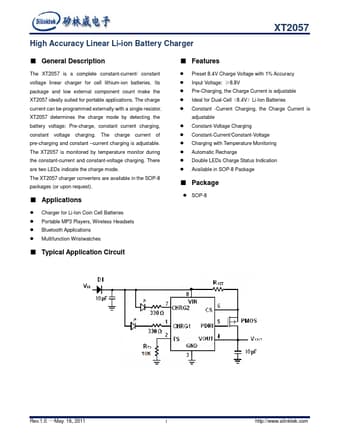

XT2057 Datasheet Preview — Preview of XT2057 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	XT2057
Manufacturer	Silinktek
File Size	214.55 KB
Description	High Accuracy Linear Li-ion Battery Charger
Datasheet	XT2057-Silinktek.pdf

XT2057 Product details

Description

The XT2057 is a complete constant-current/ constant voltage linear charger for cell lithium-ion batteries. current charging is adjusta

Features

s.
Preset 8.4V Charge Voltage with 1% Accuracy.
Input Voltage: ≥8.8V.
Pre-Charging, the Charge Current is adjustable.
Ideal for Dual-Cell（8.4V）Li-Ion Batteries.
Constant -Current Charging, the Charge Current is adjustable.
Constant-Voltage Charging.
Constant-Current/Constant-Voltage.
Charging with Temperature Monitoring.
Automatic Recharge.
Double LEDs Charge Status Indication.
Available in SOP-8 Package.
Package.
SOP-8 Rev.1.0.
