XT2116 - Fast Turn-on Asymmetric Thyristor

Download the XT2116 datasheet PDF. This datasheet also covers the XT2 variant, as both devices belong to the same fast turn-on asymmetric thyristor family and are provided as variant models within a single manufacturer datasheet.

Features

  • s The XT2116 is Asymmetrical Thyristor in which the reverse voltage capability has been sacrificed to enable a high forward blocking characteristic combined with excellent turn-on performance. s Designed for rapid and efficient switching of high current pulses. Outline type code: SO28. See Package Details for further information.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (XT2-116.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number XT2116
Manufacturer Dynex Semiconductor
File Size 30.49 KB
Description Fast Turn-on Asymmetric Thyristor
Datasheet download datasheet XT2116 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
XT2111 High-current LED Controller Silinktek
XT2100 Programmable Linear Constant Current LED Driver Silinktek
XT2101 Three Function Programmable Constant Current Source Silinktek
XT2102 Three Function Programmable Constant Current Source Silinktek
XT2104 Three Function Programmable Constant Current Source Silinktek

Other Datasheets by Dynex Semiconductor

Part Number Description
XT2116-1001 Fast Turn-on Asymmetric Thyristor
XT2116-1201 Fast Turn-on Asymmetric Thyristor
XT2116-1401 Fast Turn-on Asymmetric Thyristor
XT2116-1601 Fast Turn-on Asymmetric Thyristor
XT2116-801 Fast Turn-on Asymmetric Thyristor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

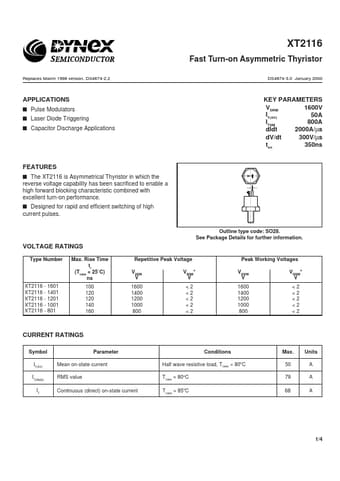

XT2116 XT2116 Fast Turn-on Asymmetric Thyristor Advance Information Replaces March 1998 version, DS4674-2.2 DS4674-3.0 January 2000 APPLICATIONS s Pulse Modulators s Laser Diode Triggering s Capacitor Discharge Applications KEY PARAMETERS VDRM 1600V IT(AV) 50A ITSM 800A dIdt 2000A/µs dV/dt 300V/µs ton 350ns FEATURES s The XT2116 is Asymmetrical Thyristor in which the reverse voltage capability has been sacrificed to enable a high forward blocking characteristic combined with excellent turn-on performance. s Designed for rapid and efficient switching of high current pulses. Outline type code: SO28. See Package Details for further information. VOLTAGE RATINGS Type Number Max.
