SSF1504D MOSFET

SSF1504D Description

                                 Main Product Characteristics: VDSS 170V(typ) RDS(on) 0.3Ω(typ) ID 6A DPAK  .
It utilizes the latest trench processing techniques to achieve the high cell density and reduces the on-resistance with high repetitive avalanche rat.

SSF1504D Features

* Advanced trench MOSFET process technology

SSF1504D Applications

* Ultra low on-resistance with low gate charge
* Fast switching and reverse body recovery

📥 Download Datasheet

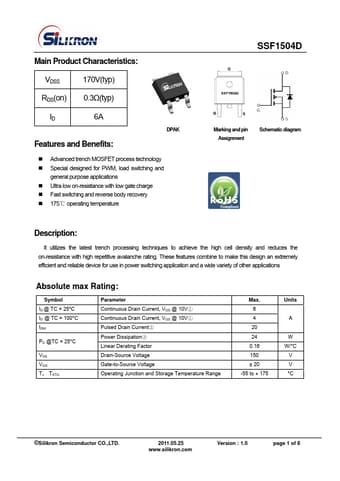

Preview of SSF1504D PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SSF1504D
Manufacturer
Silikron
File Size
434.14 KB
Datasheet
SSF1504D-Silikron.pdf
Description
MOSFET
