SST37VF010 - (SST37VFxxx) 512 Kbit / 1 Mbit / 2 Mbit / 4 Mbit (x8) Many-Time Programmable Flash

Silicon Storage Technology

The SST37VF010 by Silicon Storage Technology is a (SST37VFxxx) 512 Kbit / 1 Mbit / 2 Mbit / 4 Mbit (x8) Many-Time Programmable Flash. Below is the official datasheet preview.

📥 Download Datasheet

SST37VF010 (SST37VFxxx) 512 Kbit / 1 Mbit / 2 Mbit / 4 Mbit (x8) Many-Time Programmable Flash by Silicon Storage Technology - Datasheet Preview — Official preview page of the SST37VF010 (SST37VFxxx) 512 Kbit / 1 Mbit / 2 Mbit / 4 Mbit (x8) Many-Time Programmable Flash datasheet (Silicon Storage Technology).

Datasheet Details

Part number	SST37VF010
Manufacturer	Silicon Storage Technology
File Size	405.19 KB
Description	(SST37VFxxx) 512 Kbit / 1 Mbit / 2 Mbit / 4 Mbit (x8) Many-Time Programmable Flash
Datasheet	SST37VF010_SiliconStorageTechnology.pdf

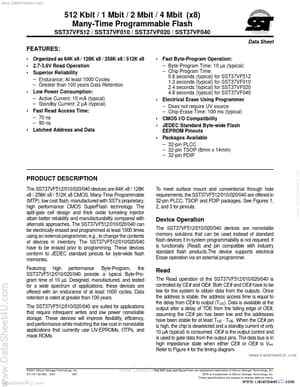

Additional preview pages of the SST37VF010 datasheet.

SST37VF010 Product details

Description

The SST37VF512/010/020/040 devices are 64K x8 / 128K x8 / 256K x8 / 512K x8 CMOS, Many-Time Programmable (MTP), low cost flash, manufactured with SST’s proprietary, high performance CMOS SuperFlash technology.

Features

Organized as 64K x8 / 128K x8 / 256K x8 / 512K x8.
2.7-3.6V Read Operation.
Superior Reliability.
Endurance: At least 1000 Cycles.
Greater than 100 years Data Retention.
Low Power Consumption:.
Active Current: 10 mA (typical).
Standby Current: 2 µA (typical).
Fast Read Access Time:.
70 ns.
90 ns.
Latched Address and Data.
Fast Byte-Program Operation:.
Byte-Program Time:.
